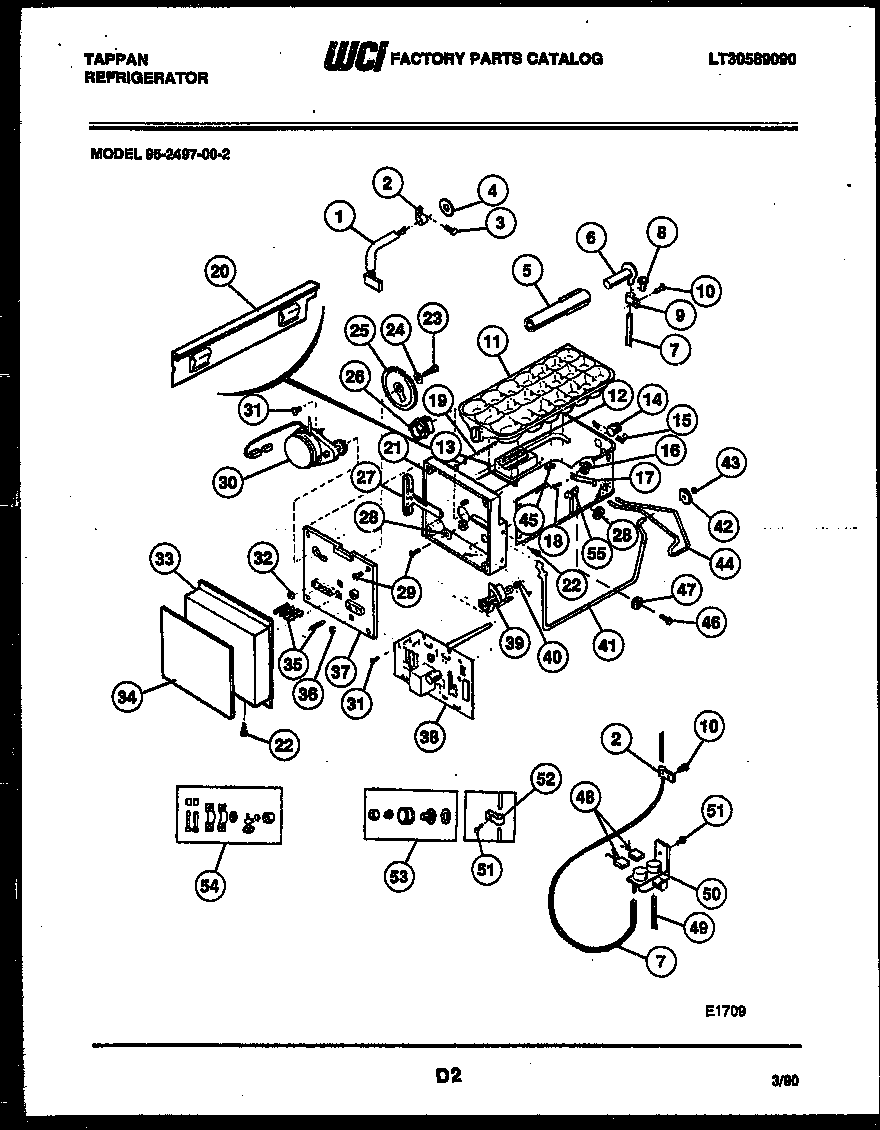

95-2497-57-02 09 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
*36871	HOLDER-CABLE
1	WIRING HARNESS-ICE MAKER (UPPER)
2	5308000133 Frigidaire Refrigerator Clamp
4	5303001147 Frigidaire Refrigerator Plug-Harness Hole
5	WCI 5308015765
6	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI 5303001191
9	5303001193 Frigidaire Refrigerator Clamp
10	5304455651 Frigidaire Refrigerator Screw
11	ICE TRAY
12	WCI 5303001141
13	WCI 5301138379
14	WCI 5300618683
15	WCI 5303001132
16	WCI 5300174436
17	SPRING-TRAY
18	SCREW – TRANSFORMER (2) (NON-ILLUSTRATED)
19	WCI 5301138166
20	WCI 01124226
21	HOUSING-ICE MAKER
22	SCREW-CLOSER MTG
23	WCI 5303001119
24	WCI 5303001117
25	WCI 5301124984
26	WCI 5301124972
27	WCI 5303001136
28	WASHER
29	SCREW (5)
30	WCI 5301124982
31	WCI 5301124507
32	NUT – HEX 10-32 LH
33	WCI 5303001148
34	LABEL-ICE MAKER
35	FOLLOWER-CAM (PIN)
36	RETAINING RING
37	PLATE-MOUNTING
38	PRINTED CIRCUIT BOARD
39	WCI 5301124983
40	WCI 5303001139
41	SENSING ARM
42	BEARING-GAUGE ARM
43	RETAINING RING (NON-ILLUSTRATED)
44	WIRE-SHUT OFF
45	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
46	WCI 5308012819
47	WASHER-NYLON,3/16 X 5/8 OD
48	WIRING HARNESS-ICE & WATER (LOWER)
49	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
50A	CAP-WATER VALVE (NON-ILLUSTRATED)
50	WATER VALVE SOLENOID
51	5308000039 Frigidaire Refrigerator Screw
52	5304455846 Frigidaire Refrigerator Clamp
53	ADAPTER-WATER SPLY
54	WCI 5308000247
55	WCI 5308012818
