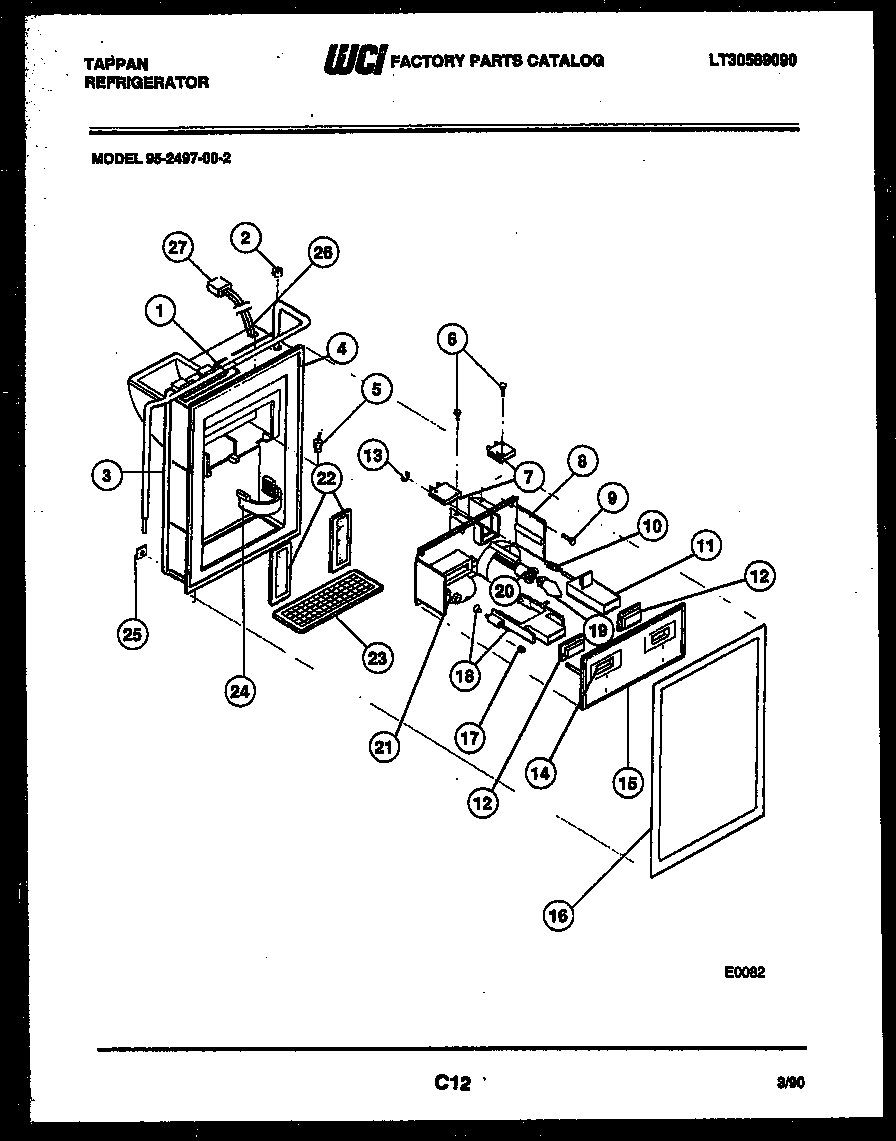

95-2497-66-02 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
*36862	DIODE KIT (NON-ILLUSTRATED)
1	TUBE-WATER INLET AND PILOT ASSY
2	WCI G175246
3	WCI G182738
4	WCI 3001710
5	WCI G179999
6	WCI G177686
7	WCI G185542
8	PLATE-SWITCH MTG
9	WCI G185567
10	SPRING-WTR ACTUATOR
11	WCI G185063-01
12	WCI G187106-01
12A	LABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
13	WCI G174411
14	WCI G182654-03
15	WCI G182643-01
16	WCI 5317772106
17	WCI G174414
18	WCI G177725
19	WCI 5304506475
20	WCI G177729
21	WCI G177724
22	WCI G182929
23	WCI 5303208909
24	SKIRT
25	PUSH NUT (6) (NON-ILLUSTRATED)
26	WCI G185226
27	WCI G177742
