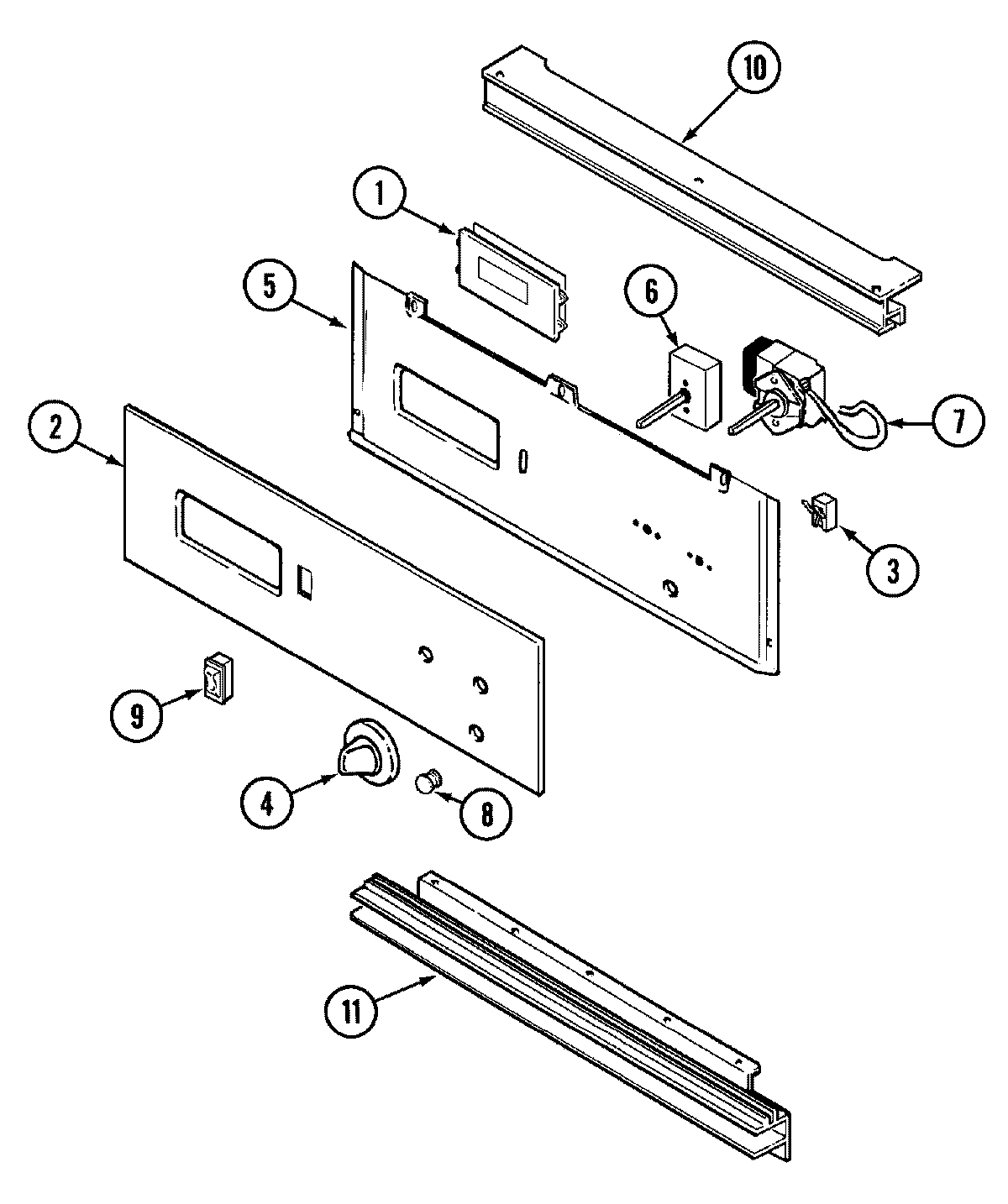

9512XUB 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7101P075-60
1	W10799767 Whirlpool Clock Timer
1	MAY 7602P118-60
2	MAY 7101P356-60
2	MAY 74001836
2	MAY 8010P050-60
3	W10852510 Whirlpool Indicator Light
4	MAY 7711P291-60
5	MAY 74001837
6	SCREW
6	WP7403P172-60 Whirlpool Selector Switch
7	MAY 7404P049-60
7	MAY 7101P279-60
8	W11690131 Whirlpool Light Lens
9	MAY 7403P102-60
10	MAY 74001854
11	MAY 7756P071-60
11	WP98008545 Whirlpool Screw
12	MAY 74001840
13	MAY W10169637
13	MAY 8112P322-60
13	MAY 74001838
13	MAY 74005224
14	MAY 16000329
