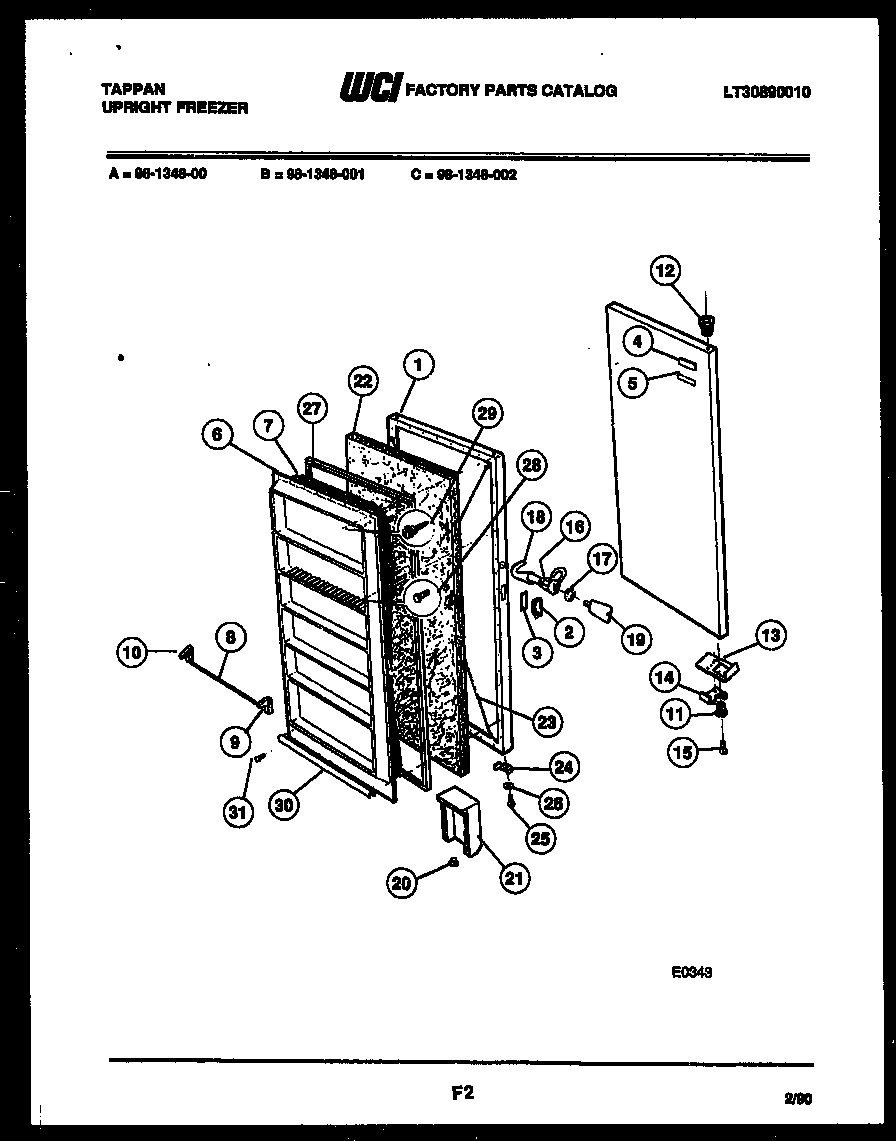

98-1348-00-02 02 – DOOR PARTS

98-1348-00-02 02 – DOOR PARTS

Written by

in

98-1348-00-02 02 – DOOR PARTS

Products

PositionProduct
1DOOR SHELL
2WCI F129863
3WCI F112639
4WCI 3204179
5WCI 3204180
6PANEL-INNER (WHITE)
7INSULATION (CUT TO SIZE)
8SHELF FRONT WIRE (4)
9END CAP RH (4)
10END CAP LH (4)
12WCI F84893
13BRACKET-DOOR STOP
14WCI F124623
15SCREW-STOP
16WCI 5300190358
17WASHER
18WCI F124455
19297147700 Frigidaire Freezer Plastic Door Key
21AIR DUCT BREATHER
22WCI F116277
23WIRE ADJUSTING
24WCI F57880
25SCREW, BRACKET (2)
26WASHER BRACKET (2)
27INSERT HANDLE
28216858001 Frigidaire Refrigerator Screw
29WCI 08009384
30WCI F99439
315303212828 Frigidaire Refrigerator Primary Clip
