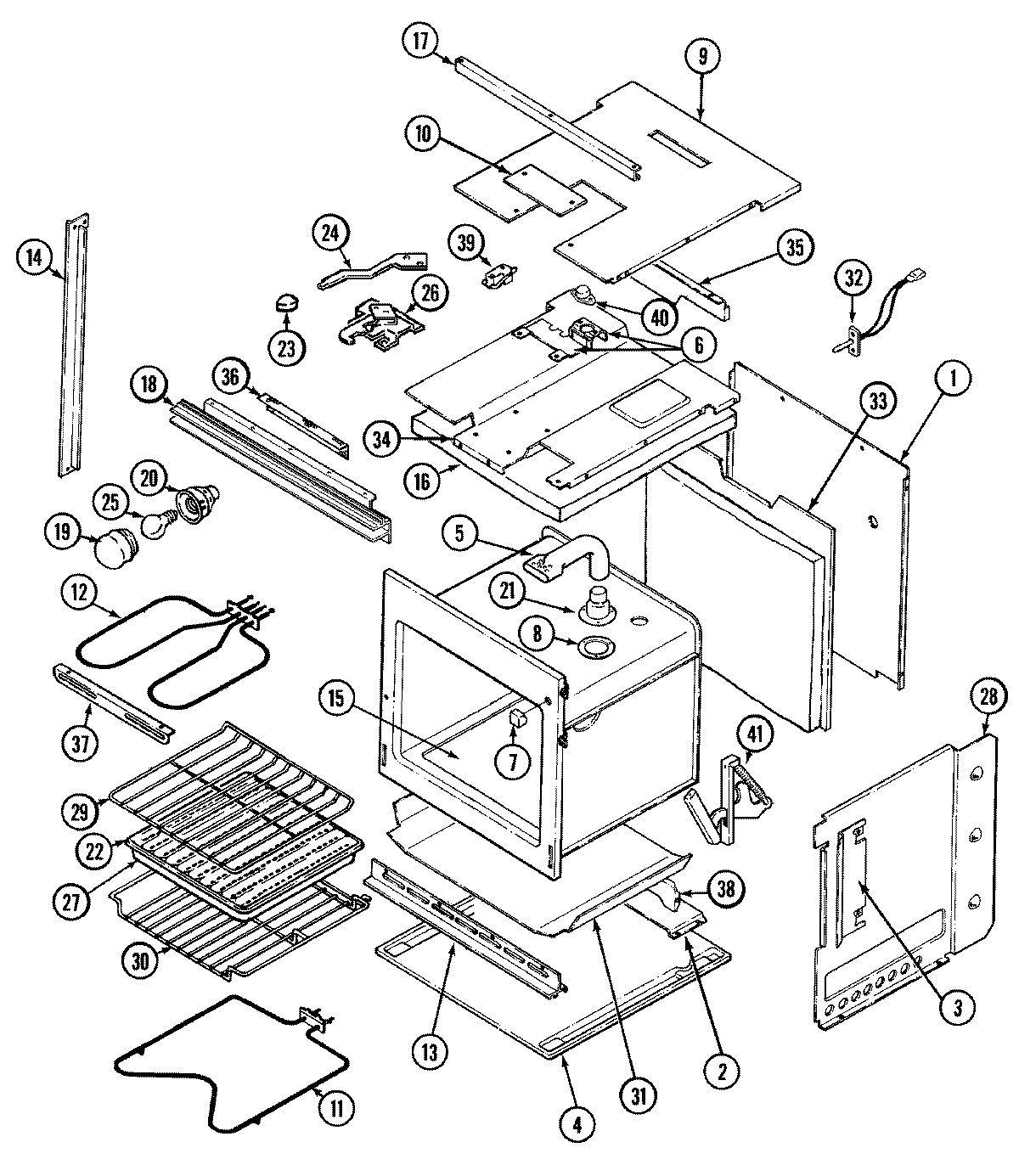

9815VUV 03 – OVEN/BODY

Products

Position	Product
1	MAY 4002F121-51
2	MAY 3601F005-61
3	MAY 3601F244-51
4	SCREW (10ABX1.0-ZN)
4	MAY 4003F011-80
5	MAY 8026P022-60
6	MAY 3801F128-45
7	MAY 8003P009-60
8	MAY 7201P016-60
9	MAY 4005F452-51
10	MAY 4005F160-45
11	MAY 7406P075-60
11	WPY04000066 Whirlpool Oven Bake Element
12	MAY 7201P003-60
12	MAY 7406P090-60
13	MAY 7706P075-60
13	MAY 74001859
14	SCREW
14	MAY 7750P104-60
14	MAY 7750P106-60
14	MAY 74001566
14	MAY 74001565
15	MAY 2205F003-19
16	MAY 7002P153-60
16	MAY 7002P154-60
16	MAY 7002P163-60
17	MAY 7752P012-60
18	MAY 7756P024-60
19	WP9781049 Whirlpool Light Lens
20	WP7407P182-60 Whirlpool Lamp
21	MAY 7505P226-60
22	MAY Y3413F01619
23	MAY 7701P133-60
23	MAY 7112P003-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
24	MAY 8009P011-60
24	MAY 74002973
25	RANGE ONLY 40W 120V APPL BULB
26	8002P072-60 Whirlpool Door Latch
27	MAY Y3401F02019
28	MAY 2618F114-51
28	MAY 7101P356-60
28	MAY 2618F113-51
29	MAY 7801P005-60
30	MAY 7801P007-60
31	MAY 3804F104-51
32	MAY 7430P010-60
32	MAY Y04000052
33	MAY 3804F096-51
34	MAY 3804F118-51
35	MAY 3604F101-80
36	MAY 3604F048-80
37	MAY 3807F176-19
38	MAY 3807F137-80
39	MAY 7403P347-60
39	MAY 7101P330-60
40	MAY 7101P290-60
41	MAY 7106P037-60
41	74001984 Whirlpool Stove Door Hinge
