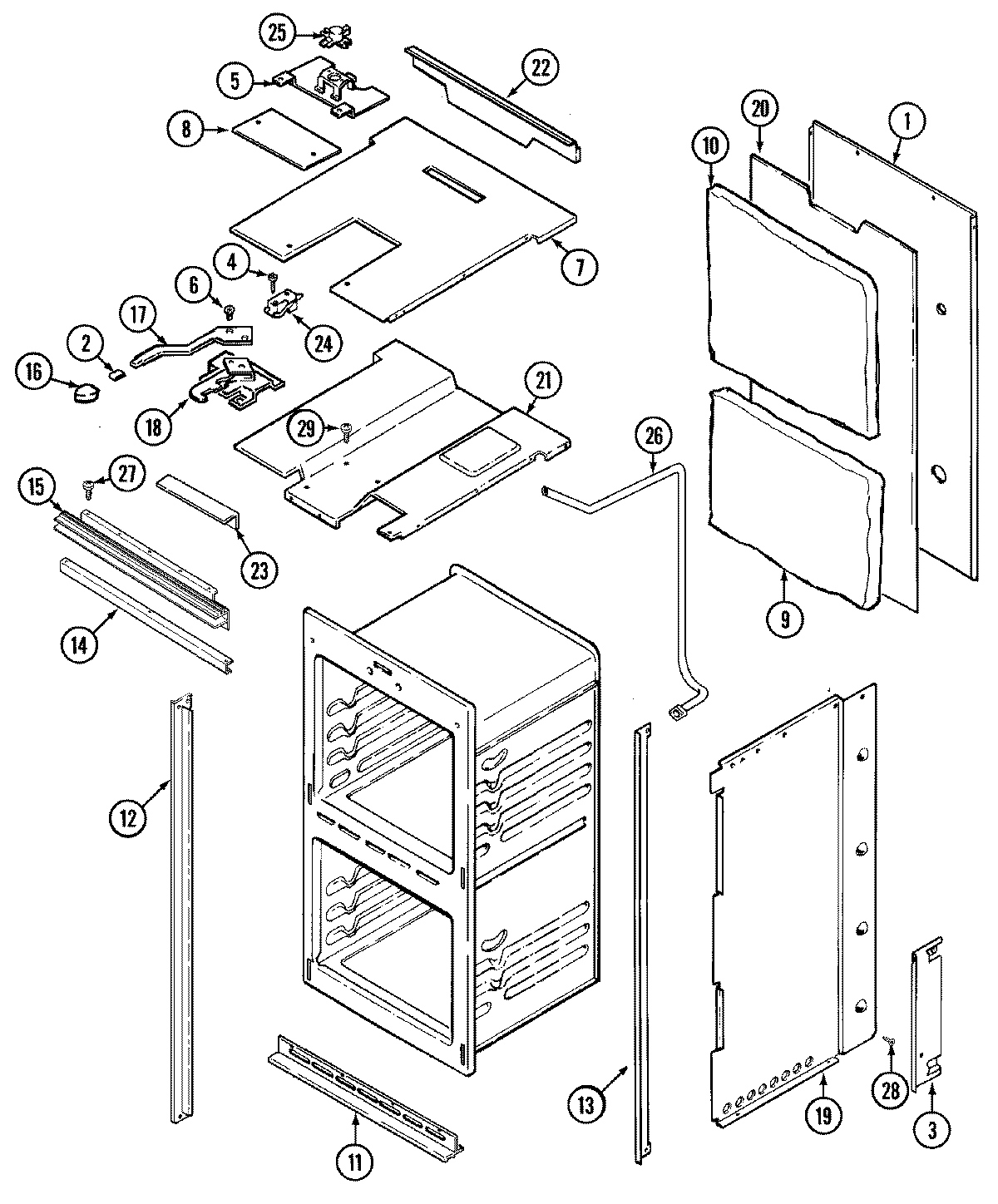

| 1 | MAY 4002F143-51 |
| 2 | MAY 7112P003-60 |
| 3 | MAY 3601F244-51 |
| 4 | MAY 7101P330-60 |
| 5 | MAY 3801F128-45 |
| 6 | WP4159193 Whirlpool Screw |
| 7 | MAY 4005F452-51 |
| 8 | MAY 4005F160-45 |
| 9 | MAY 7002P163-60 |
| 10 | MAY 7002P154-60 |
| 10 | MAY 7002P157-60 |
| 11 | MAY 7706P075-60 |
| 11 | MAY 74001859 |
| 11 | MAY 74001846 |
| 12 | MAY 74001568 |
| 12 | MAY 7750P108-60 |
| 13 | MAY 7750P110-60 |
| 13 | MAY 74001567 |
| 14 | MAY 7752P012-60 |
| 15 | MAY 7756P024-60 |
| 16 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 16 | MAY 7701P133-60 |
| 17 | MAY 74002973 |
| 17 | MAY 8009P011-60 |
| 18 | 8002P072-60 Whirlpool Door Latch |
| 18 | MAY 3801F127-51 |
| 18 | MAY 7003P001-60 |
| 19 | MAY 2618F115-51 |
| 19 | MAY 2618F116-51 |
| 20 | MAY 3804F105-51 |
| 21 | MAY 3804F118-51 |
| 22 | MAY 3604F101-80 |
| 23 | MAY 3604F048-80 |
| 24 | MAY 7403P347-60 |
| 26 | MAY 8026P014-60 |
| 27 | SCREW |
| 28 | MAY 7101P356-60 |
| 29 | MAY 7101P061-60 |
| 29 | WP7103P027-60 Whirlpool Nut |
| 29 | MAY 5170P185-60 |
| 29 | SCREW (10ABX1.0-ZN) |
| 29 | MAY 7101P082-60 |
| 29 | MAY 7401P038-60 |
