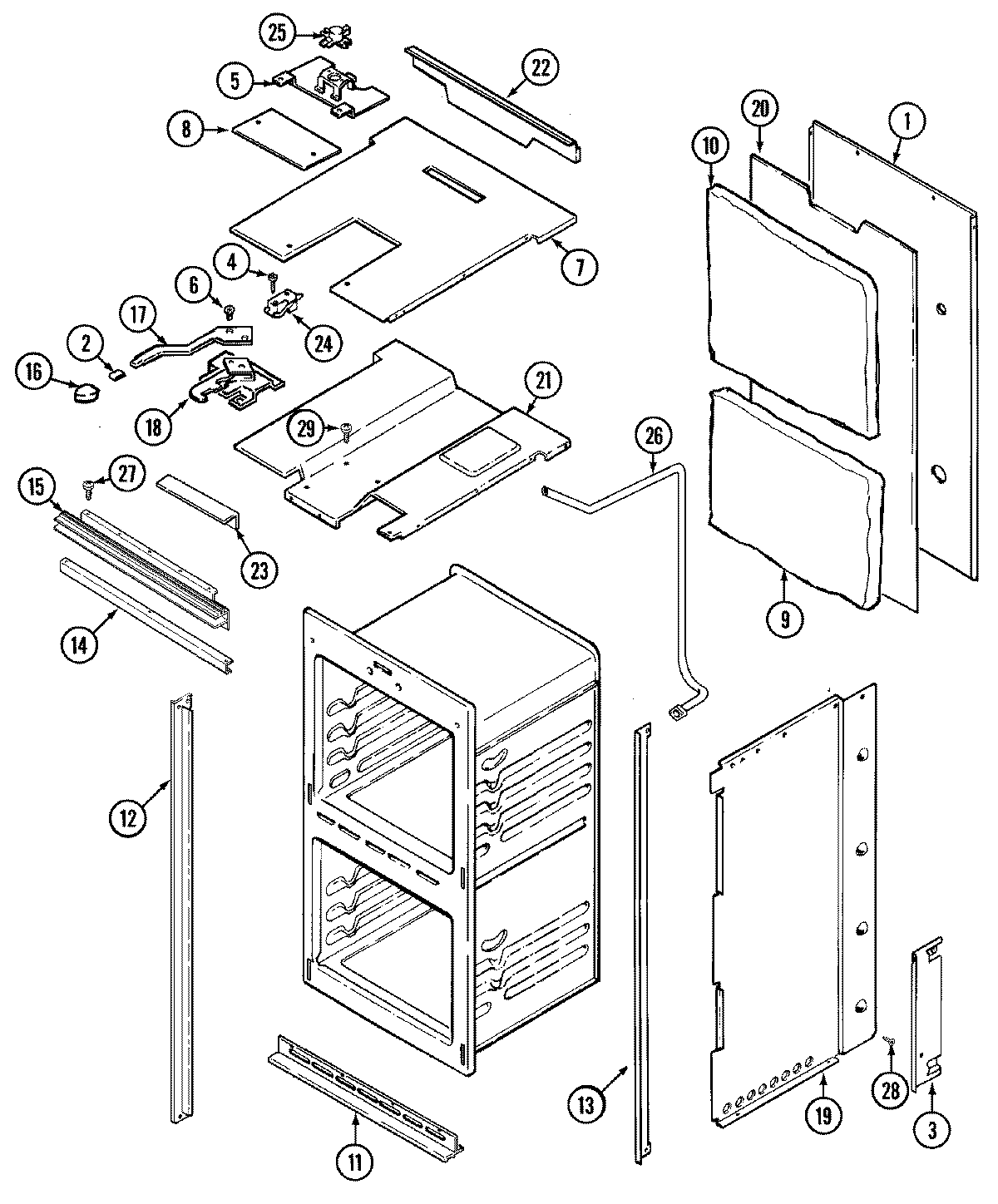

9825XUB 01 – BODY

Products

Position	Product
1	MAY 4002F143-51
2	MAY 7112P003-60
3	MAY 3601F244-51
4	MAY 7101P330-60
5	MAY 3801F128-45
6	WP4159193 Whirlpool Screw
7	MAY 4005F452-51
8	MAY 4005F160-45
9	MAY 7002P163-60
10	MAY 7002P157-60
10	MAY 7002P154-60
11	MAY 74001846
12	MAY 74001562
12	MAY 7750P107-60
13	MAY 7750P109-60
13	MAY 74001561
14	EXTRUSION, TOP FRONT
15	MAY 7756P070-60
16	MAY 7701P132-60
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 8009P011-60
17	MAY 74003005
18	MAY 7003P001-60
18	MAY 3801F127-51
18	8002P072-60 Whirlpool Door Latch
19	MAY 2618F115-51
19	MAY 2618F116-51
20	MAY 3804F105-51
21	MAY 3804F118-51
22	MAY 3604F101-80
23	MAY 3604F048-80
24	MAY 7403P347-60
26	MAY 8026P014-60
27	WP98008545 Whirlpool Screw
28	MAY 7101P356-60
29	MAY 7101P061-60
29	SCREW (10ABX1.0-ZN)
29	WP7103P027-60 Whirlpool Nut
29	MAY 5170P185-60
29	MAY 7401P038-60
29	MAY 7101P082-60
