9845XUB 01 – BODY/OVEN
Written by
in

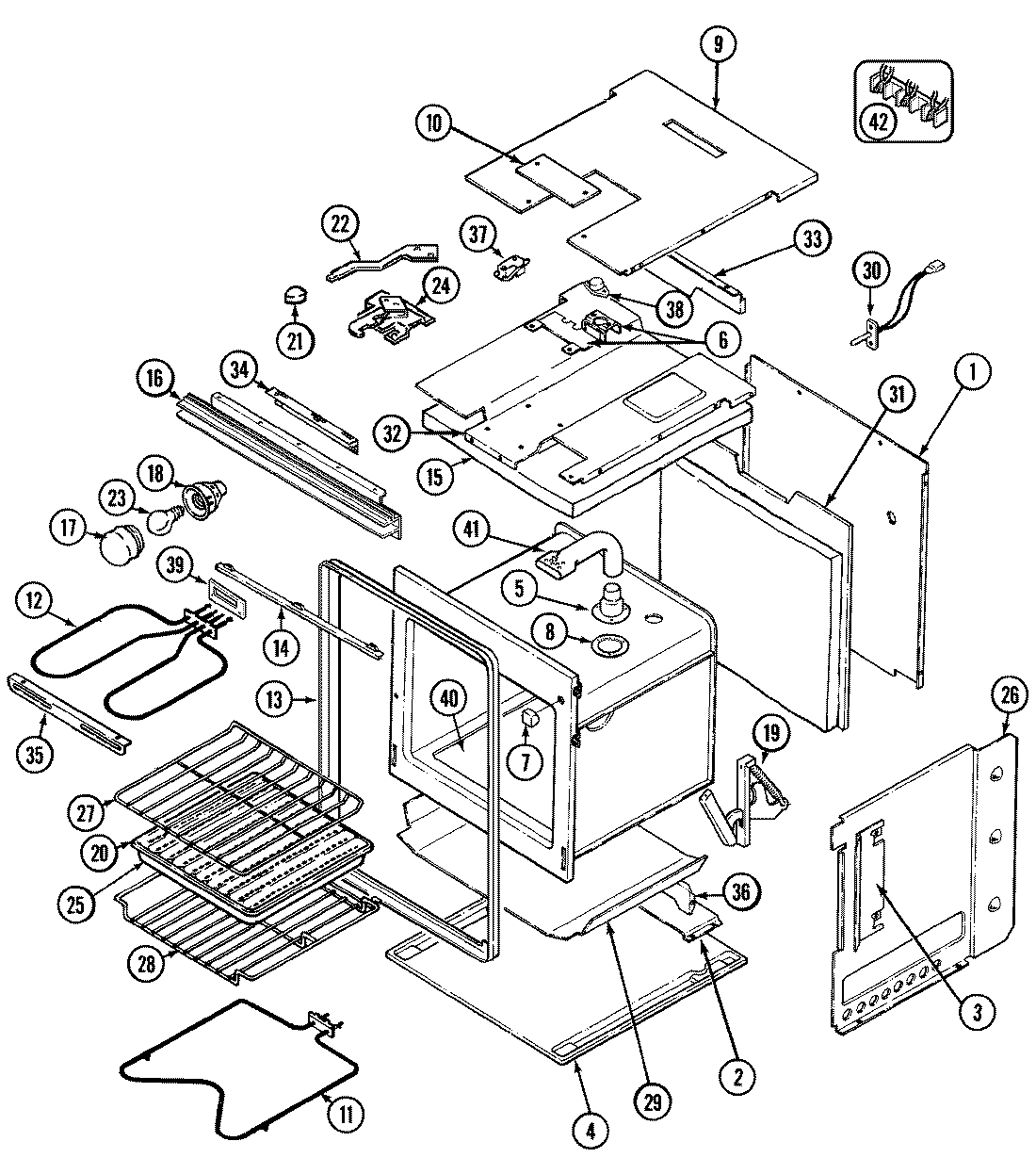

9845XUB 01 – BODY/OVEN
Products
Position
Product
1
MAY 4002F121-51
2
MAY 3601F005-61
3
MAY 3601F244-51
4
SCREW (10ABX1.0-ZN)
4
MAY 4003F011-80
5
MAY 7505P226-60
6
MAY 3801F128-45
7
MAY 8003P009-60
8
MAY 7201P016-60
9
MAY 4005F452-51
10
MAY 4005F160-45
11
MAY 7406P075-60
12
MAY 7406P090-60
13
MAY 7750P025-60
14
MAY 7706P163-60
15
MAY 7002P163-60
15
MAY 7002P154-60
15
MAY 7002P153-60
16
MAY 7756P022-60
17
WP9781049 Whirlpool Light Lens
18
WP7407P182-60 Whirlpool Lamp
19
MAY 7106P037-60
19
74001984 Whirlpool Stove Door Hinge
20
MAY Y3413F01619
21
MAY 7701P132-60
21
MAY 7112P003-60
22
MAY 8009P011-60
23
RANGE ONLY 40W 120V APPL BULB
24
8002P072-60 Whirlpool Door Latch
25
MAY Y3401F02019
26
MAY 7101P356-60
26
MAY 2618F114-51
26
MAY 2618F113-51
27
MAY 7801P005-60
28
MAY 7801P007-60
29
MAY 3804F104-51
30
MAY Y04000052
30
MAY 7430P010-60
31
MAY 3804F096-51
32
MAY 3804F118-51
33
MAY 3604F101-80
34
MAY 3604F048-80
35
MAY 3807F176-19
36
MAY 3807F137-80
37
MAY 7101P330-60
37
MAY 7403P347-60
38
MAY 7101P290-60
39
MAY 7201P003-60
40
MAY 2205F003-19
41
MAY 8026P022-60
42
MAY 7401P003-60
←
