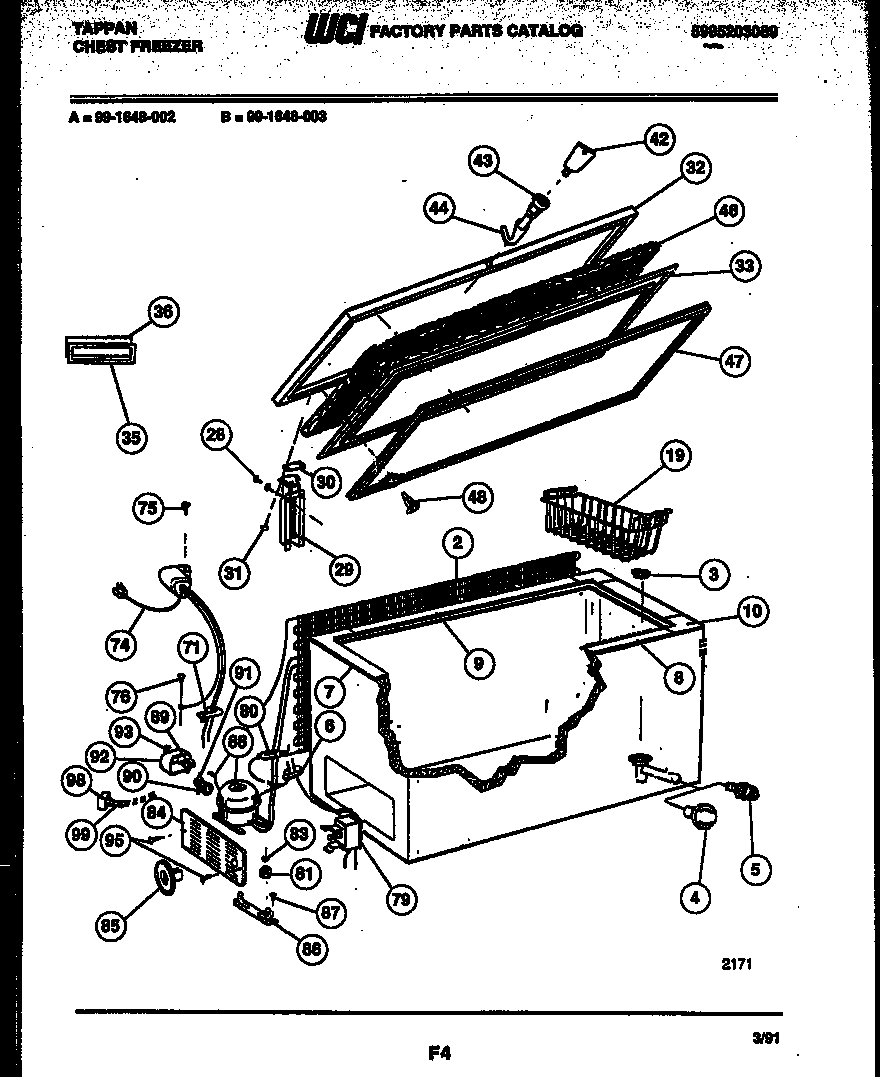

99-1648-00-03 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI F966391
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	WCI 06599967
7	WCI 5303207301
9	BREAKER REAR
10	WCI 5303207302
25	WCI 3204179
26	WCI 3204180
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	SCREW HINGE BASE
32	LID-PANEL (WHITE)
33	WCI 3204233
35	WCI 08037955
36	GASKET, WHITE
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
46	INSULATION
47	WCI 3017645
48	5303212828 Frigidaire Refrigerator Primary Clip
74	WCI 5303212629
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 5303212647
85	WCI 5303270910
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR WITH ELECTRICALS
89	WCI 5303017753
90	WCI 5303212643
91	CLIP
92	WCI 08016583
93	STRAP-BALE
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
99	WCI 5303091425
