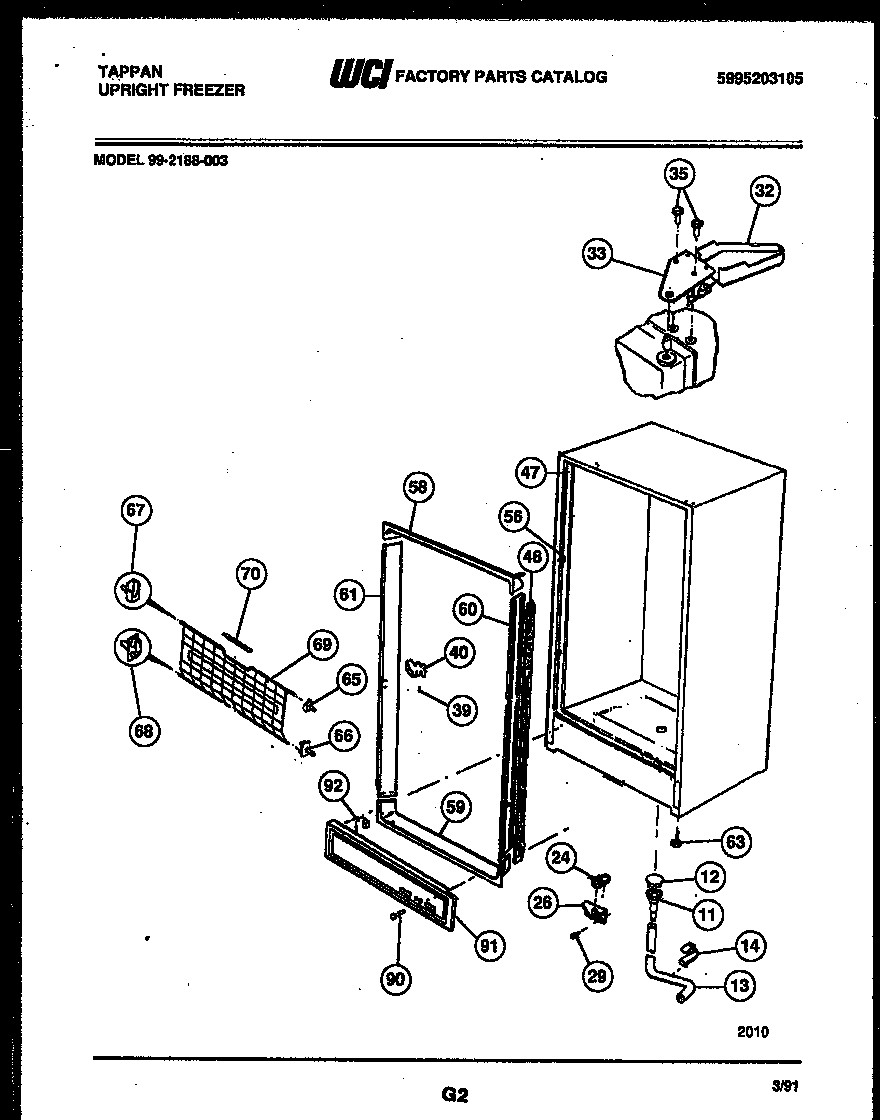

99-2188-00-03 03 – CABINET PARTS

Products

Position	Product
11	5304511843 Frigidaire Refrigerator Sleeve
12	PLUG, DRAIN, LINER
13	5304512272 Frigidaire Hose Drain
14	WCI 06593405
24	RAMP, DOOR
26	WCI 5303210383
29	154518001 Frigidaire Refrigerator Screw
32	COVER, HINGE
33	HINGE, TOP
35	WCI 5303212937
39	216858001 Frigidaire Refrigerator Screw
40	WCI 5309949966
48	INSULATION (CUT TO SIZE)
56	WCI 06594680
58	WCI 06594561
59	WCI 06594562
60	WCI F300736
61	MOULDING-LOCK SIDE
63	SCREW-LEVELING (4)
65	WCI 06599973
66	WCI 06599975
67	WCI 06599974
68	WCI 06599976
69	FRONT DROP
70	WCI 06599971
90	FASTENER BASE PANEL
91	WCI F124787
92	WCI 5300118003
