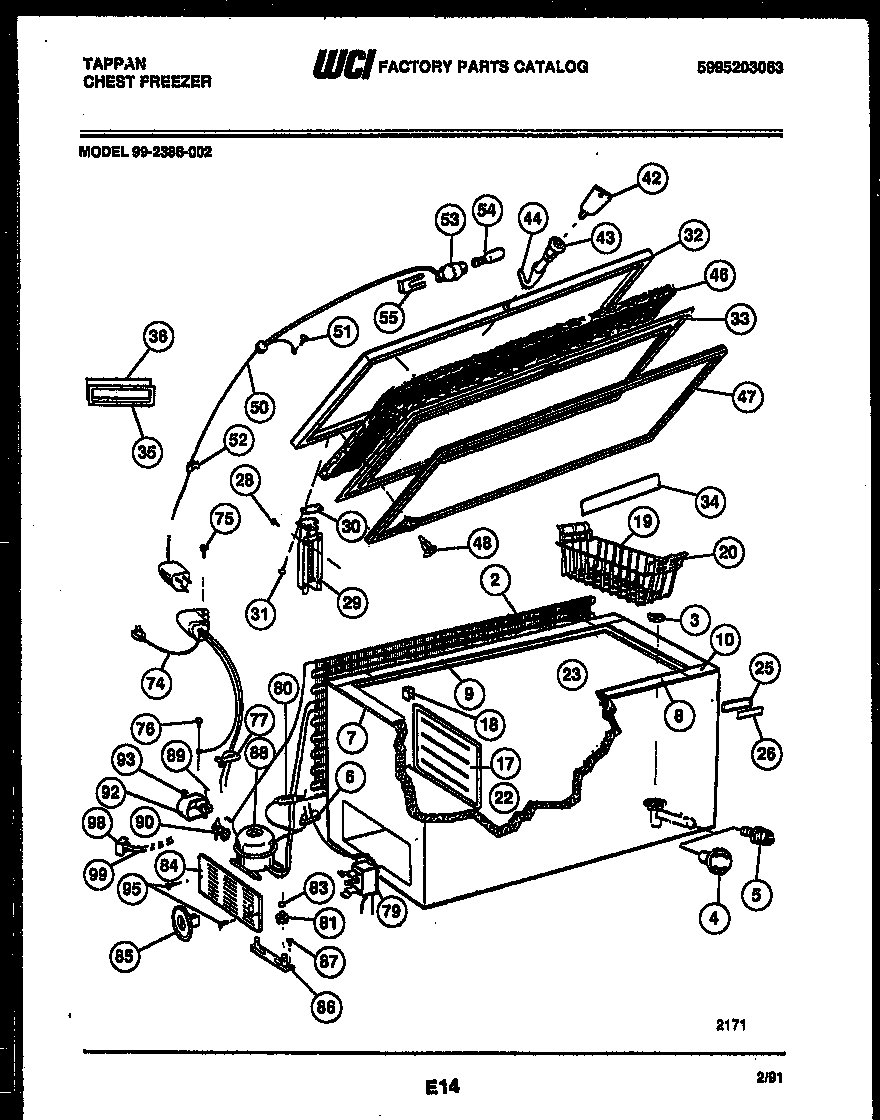

99-2388-00-02 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 530300173
3	WCI 5306393887
4	WCI 5300128045
5	WCI 06594053
6	WCI 06599967
7	WCI 5303207301
9	BREAKER REAR
10	WCI 5303207302
17	WCI F129066
18	WCI 5306594584
19	BASKET
20	WCI F129037
25	WCI 3204179
26	WCI 3204180
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	CLIP-PANEL (40)
31	SCREW HINGE BASE
32	LID-EXTERIOR
33	WCI 3201585
34	WCI 3204438
35	WCI 08037955
36	GASKET, WHITE
42	WCI 5398937402
43	WCI 5300190358
44	WCI 5300300791
44B	LATCH CATCH SUPPORT
44A	LATCH, DOOR
46	WCI 5300128901
47	WCI F128167
48	5303212828 Frigidaire Refrigerator Primary Clip
50	HARNESS LID
53	WCI 5306599955
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
74	WCI 5303212612
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 5303212647
85	WCI 5303270910
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR W/ ELECTRICALS-SERVICE
89	WCI 5303017753
90	WCI 5303206836
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
99	WCI 5303091425
