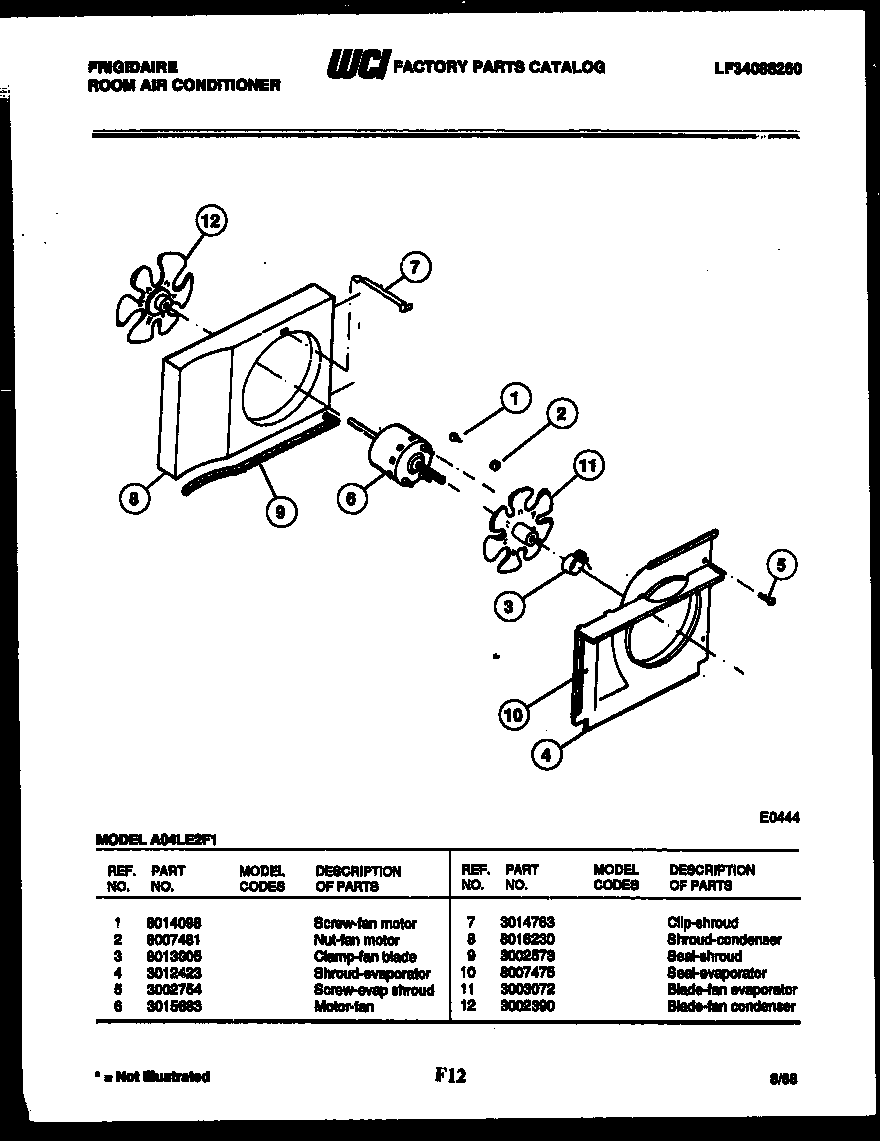

A04LE2F1 06 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	SCREW
2	NUT-PLATE (NON-ILLUSTRATED)
3	CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
4	SHROUD
5	WCI 3002754
6	WCI 3015683
7	WCI 3014763
8	SHROUD, CONDENSER
9	SEAL-TOP
10	SEAL
11	WCI 3003072
12	WCI 3002390
