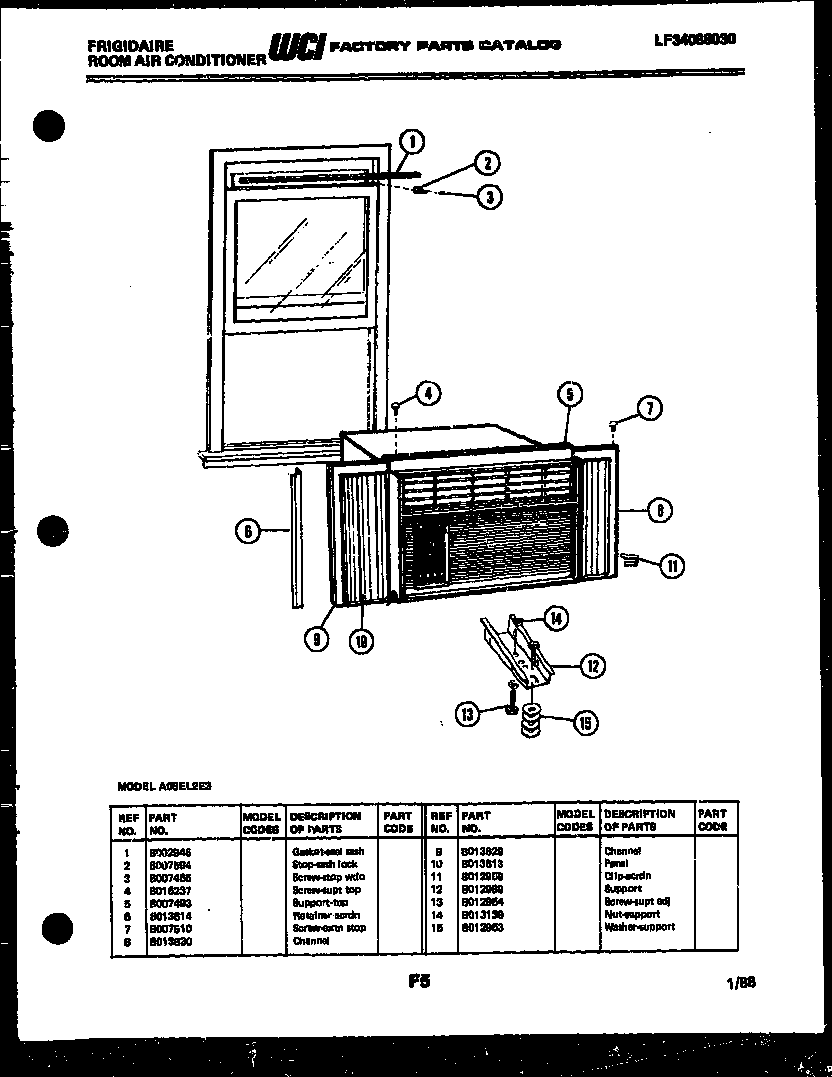

A05LE2E3 07 – WINDOW MOUNTING PARTS
Products
| Position | Product |
|---|---|
| 1 | SEAL-SASH |
| 2 | STOP, SASH |
| 3 | SCREW |
| 4 | SCREW (8) |
| 5 | WCI 8007493 |
| 6 | RETAINER (2) |
| 7 | SCREW (2) |
| 8 | CHANNEL, RH |
| 9 | CHANNEL, LH |
| 10 | PANEL, ACCORDIAN |
| 11 | CLIP-RETAINER |
| 12 | WCI 8012989 |
| 13 | SCREW-ADJUSTABLE |
| 14 | NUT |
| 15 | STRAP, CAPACITOR |
