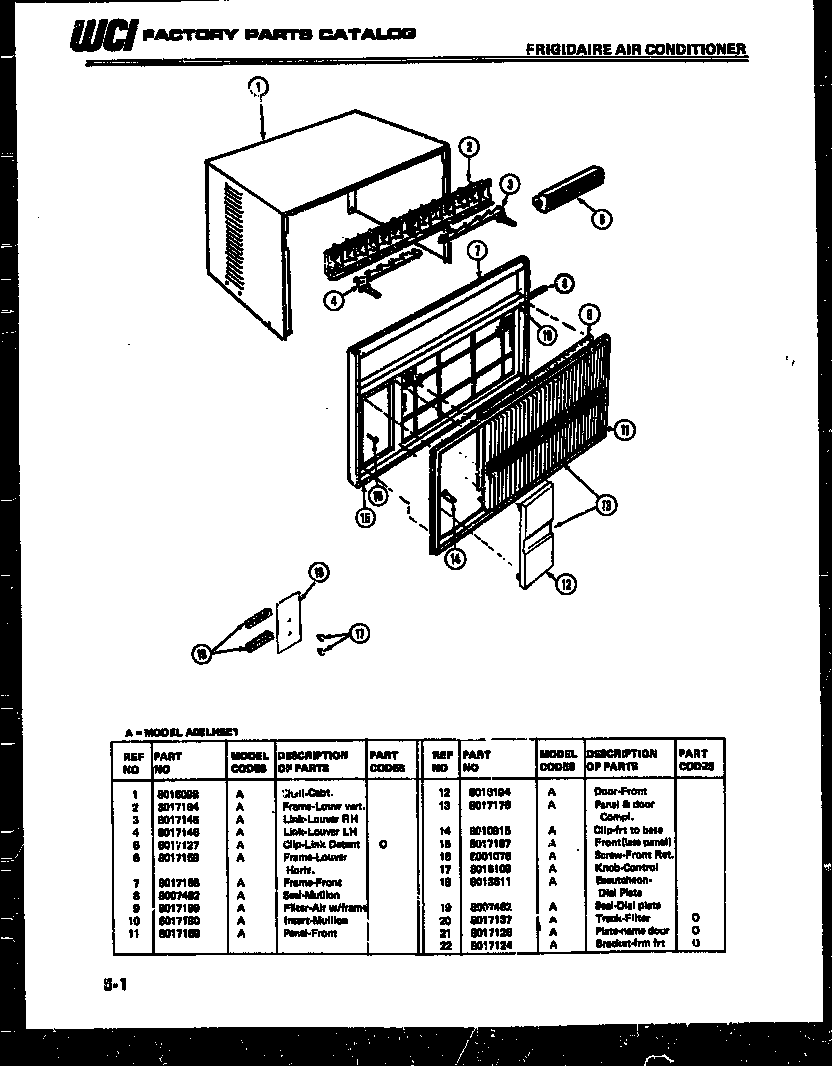

A05LH5E1 02 – CABINET PARTS

Products

Position	Product
1	SHELL
2	FRAME-LOUVER VERTICAL
3	WCI 8017145
4	WCI 8017146
5	CLIP-LINK DETENT
6	WCI 8017159
7	WCI 8017168
8	SEAL
9	FILTER-AIR WITH FRAME
10	WCI 8017180
11	WCI 8017169
12	DOOR, CONTROL
13	PANEL AND DOOR COMPLETE
14	CLIP (2)
15	WCI 8017187
16	SCREW-FRONT
17	WCI 8016109
18	PANEL, CONTROL
19	SEAL
20	TRACK-FILTER
21	PLATE-NAME
22	BRACKET-FRONT (NON-ILLUSTRATED)
