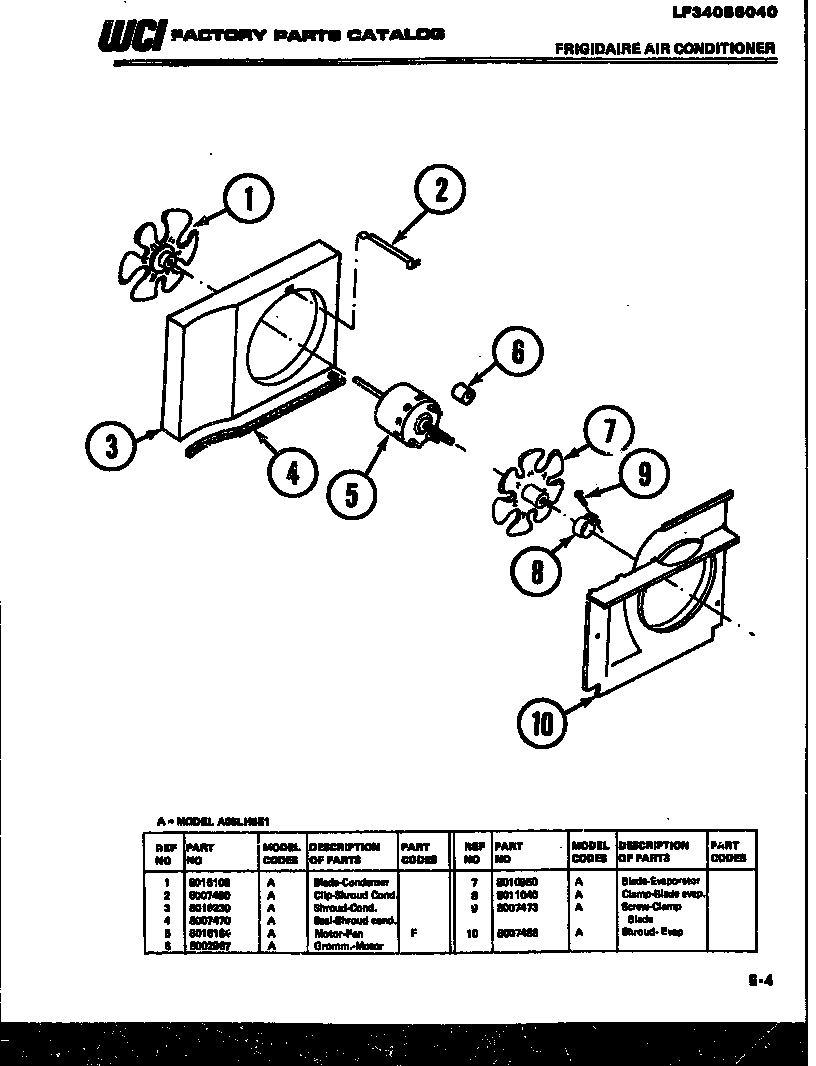

A05LH5E1 05 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	FAN, CONDENSER (INCL. CLAMP AND SCREW)
2	CLIP
3	SHROUD, CONDENSER
4	SEAL
5	WCI 8016164
6	GROMMET (3)
7	FAN, EVAPORATOR (INCL. CLAMP)
8	CLAMP
9	SCREW
10	SHROUD, EVAPORATOR
