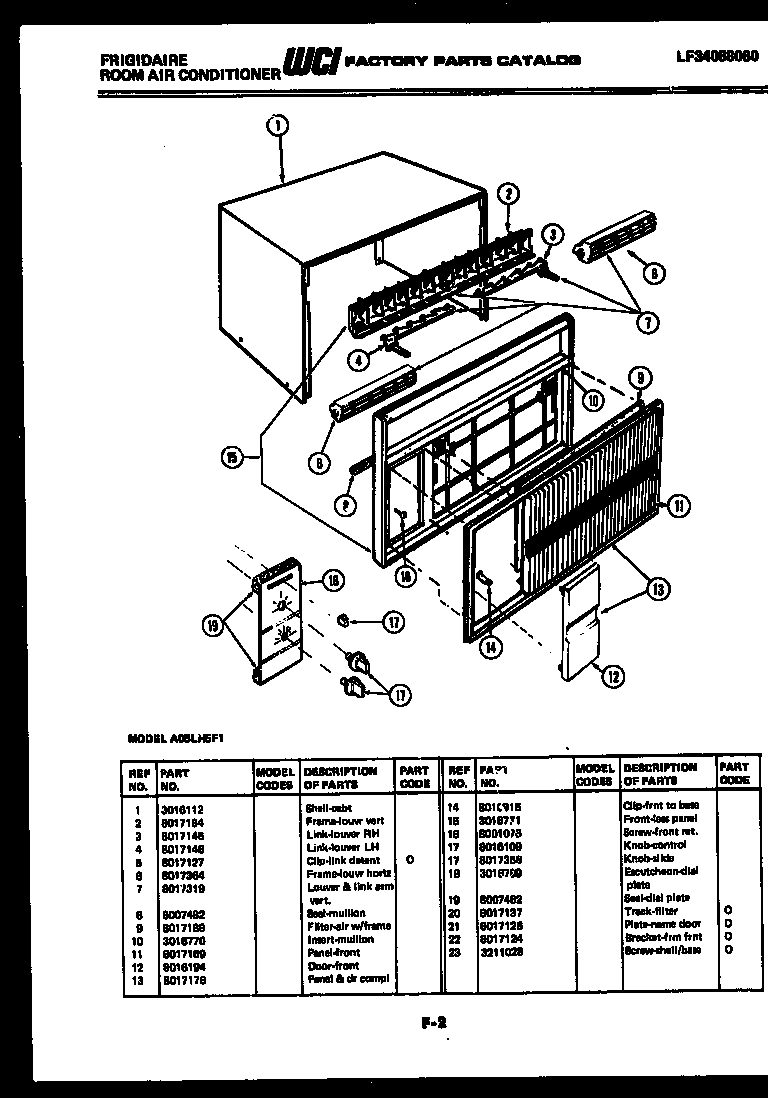

A05LH5F1 02 – CABINET PARTS

Products

PositionProduct
1SHELL-CABINET
2FRAME-LOUVER VERTICAL
3WCI 8017145
4WCI 8017146
5CLIP-LINK DETENT
6FRAME-HORIZONTAL LOUVER
7LOUVR & LINK ASSY
8SEAL
9FILTER-AIR WITH FRAME
10WCI 3016770
11WCI 8017169
12DOOR, CONTROL
13PANEL AND DOOR COMPLETE
14CLIP (2)
15WCI 3016771
16SCREW-FRONT
17WCI 8017356
17WCI 8016109
18WCI 3016769
19SEAL
20TRACK-FILTER
21PLATE-NAME
22BRACKET-FRONT (NON-ILLUSTRATED)
23SCREW-STRAP FAN
