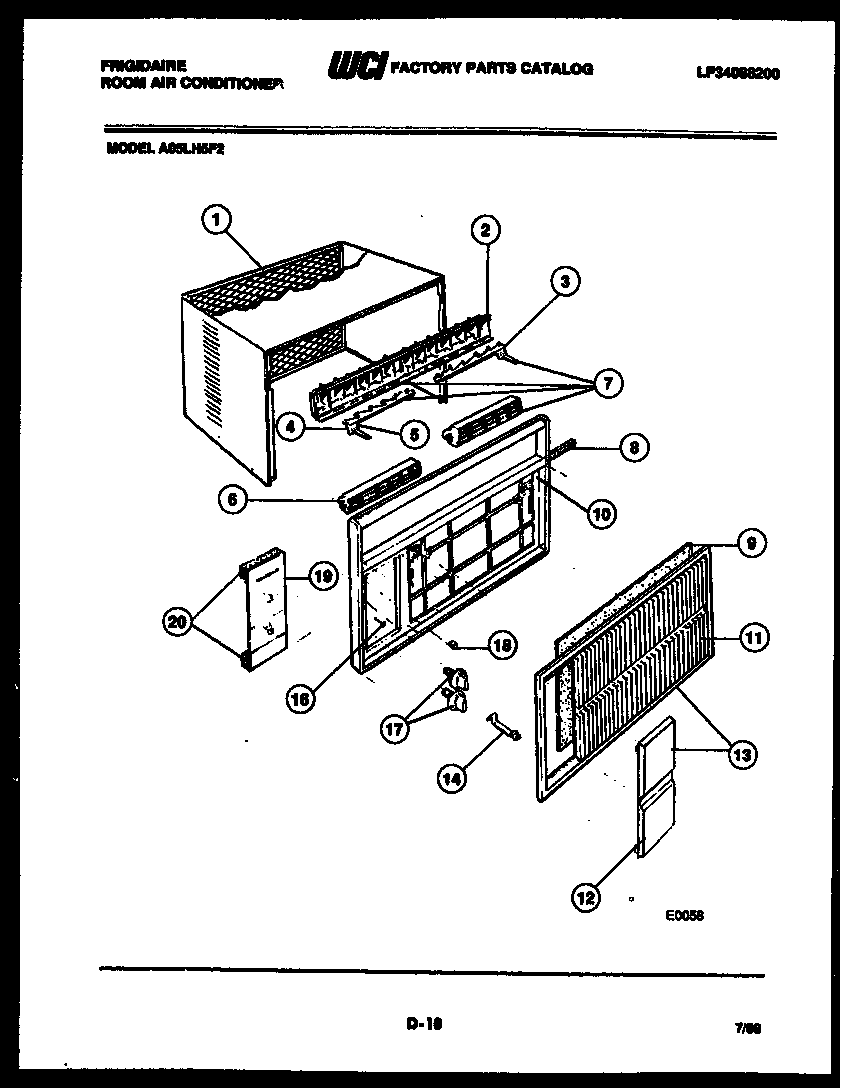

A05LH5F2 02 – CABINET PARTS

Products

Position	Product
*16493	TRACK-FILTER
*16493	SCREW-STRAP FAN
*16493	BRACKET-FRONT (NON-ILLUSTRATED)
*16493	PLATE-NAME
1	SHELL-CABINET
2	FRAME-LOUVER VERTICAL
3	LINK-VERT LOUVER RH
4	LINK-VERT LOUVER LH
5	CLIP-DETENT
6	FRAME-HORIZONTAL LOUVER
7	VERTICAL LOUVER & LINK ASSY
9	FILTER-AIR WITH FRAME
10	WCI 3016770
11	WCI 8017169
12	DOOR, CONTROL
13	PANEL AND DOOR COMPLETE
14	CLIP-FRONT TO BASE
15	WCI 3016771
16	SCREW-FRONT
17	WCI 8016109
18	WCI 3002189
19	WCI 3016769
20	WCI 3001861
