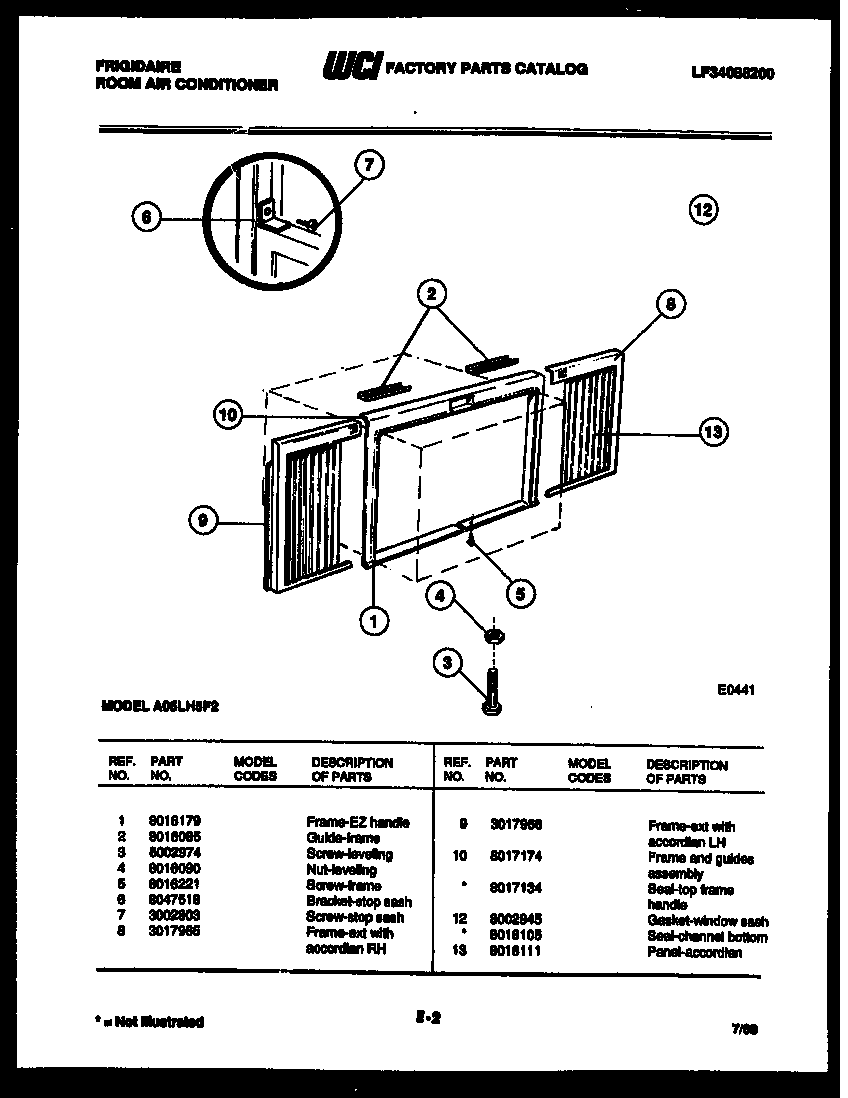

A05LH5F2 07 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
1	FRAME, E-Z HANDLE
2	GUIDE (2)
3	SCREW
4	WCI 8016090
5	SCREW (2)
6	BRACKET-STOP
7	SCREW-WOOD
8	WCI 3017965
9	WCI 3017966
10	FRAME AND GUIDES ASSEMBLY
10A	SEAL-TOP FRAME HANDLE (NON-ILLUSTRATED)
12A	SEAL, SNUBBER (2)
12	SEAL-SASH
13	WCI 8016111
