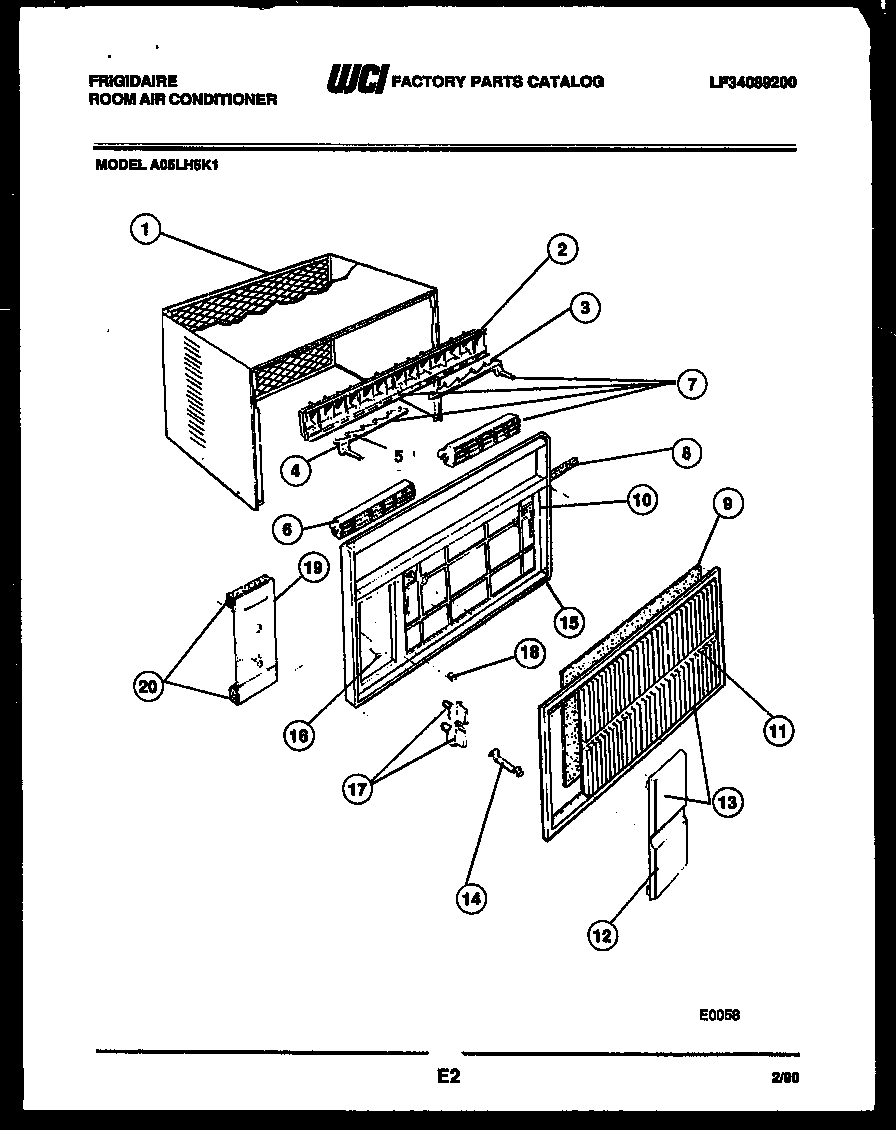

A05LH5K1 02 – CABINET PARTS

Products

Position	Product
*28457	SCREW-STRAP FAN
*28457	WCI 08017137
*28457	BRACKET-FRONT, (NON-ILLUSTRATED)
*28457	PLATE-NAME
1	WRAPPER
3	LINK-VERT LOUVER RH
4	LINK- VERT LOUVER LH
5	CLIP-DETENT
6	LOUVER
7	VERTICAL LOUVER & LINK ASSY
8	WCI 08007482
9	WCI 08017189
10	INSERT
11	PANEL
12	DOOR
13	PANEL W/ DOOR (NON-ILLUSTRATED)
14	CLIP-FRONT TO BASE
15	FRONT COMPLETE (FRONT DOES NOT INCLUDE PANEL & DOOR)
16	SCREW-FRONT
17	WCI 08016109
18	WCI 3002189
19	WCI 3016769
20	WCI 3001861
