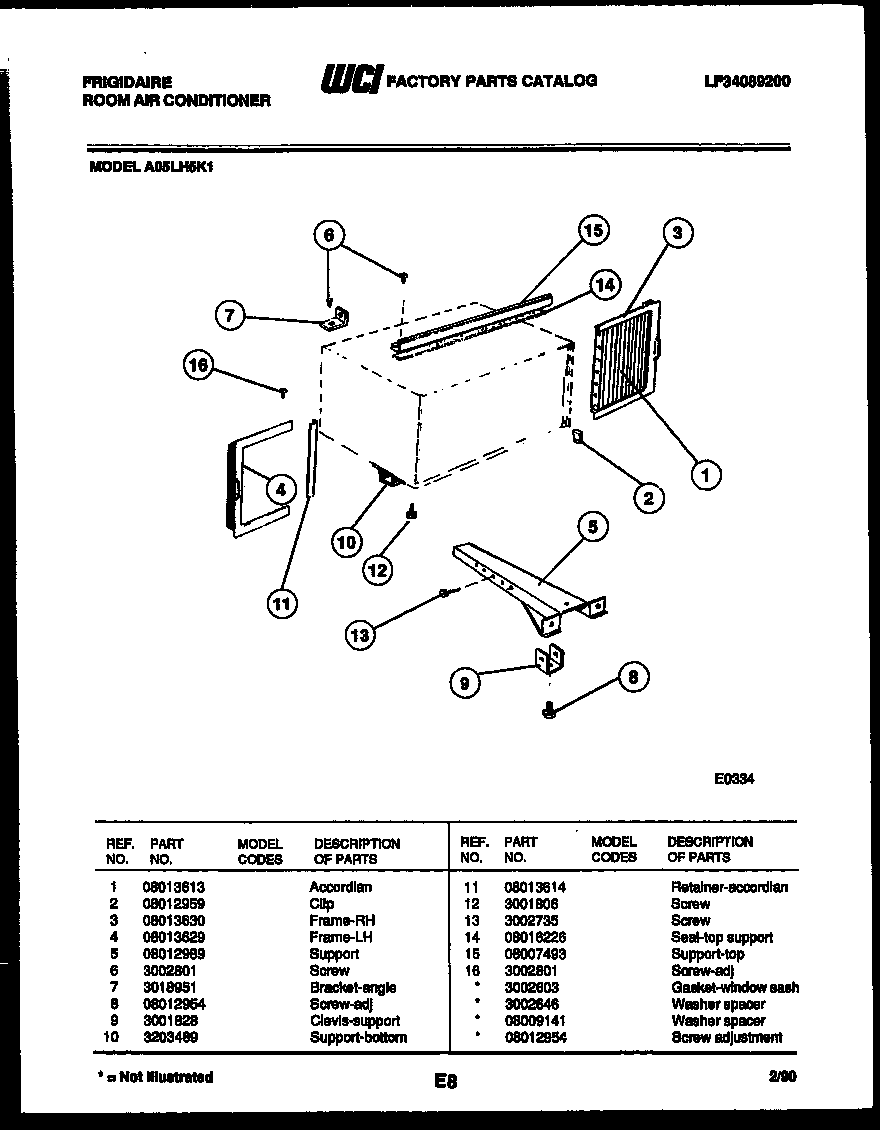

A05LH5K1 07 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
*28461	5304407729 Frigidaire Air Conditioner Seal
*28461	WCI 08009141
*28461	WASHER SPACER
1	CLOSURE-ACCORDION
2	CLIP
3	FRAME-EXTENSION RH
4	FRAME, EXTENSION, LH
5	SUPPORT
7	WCI 3018951
8	SCREW-ADJ
9	CLEVIS
10	RAIL-BOTTOM
11	WCI 08013614
12	SCREW
13	WCI 3002735
14	WCI 08016226
15	RAIL-TOP
16	WCI 3002801
