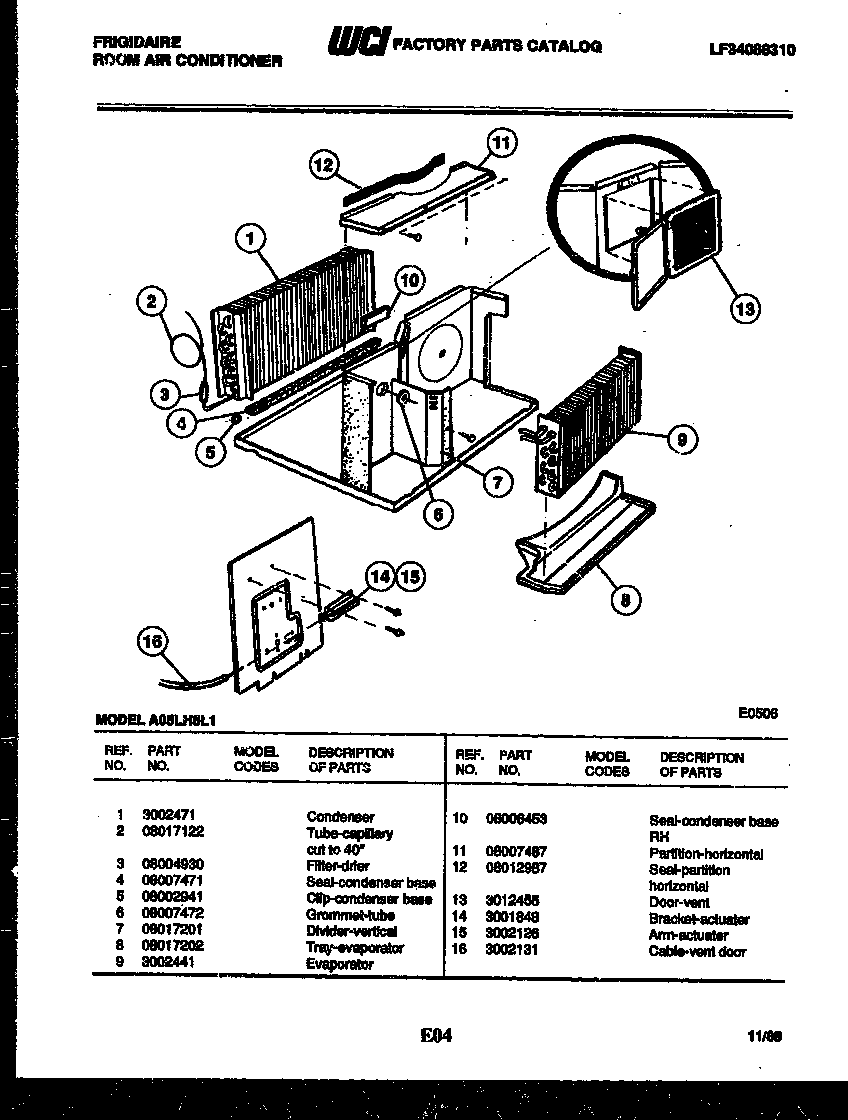

A05LH5L1 03 – UNIT PARTS

Written by

Products

Position	Product
1	WCI 3002471
2	CAPILLARY TUBE (CUT TO 40“)
3	5300265301 Frigidaire Air Conditioner P1 Filter Drier
4	WCI 08007471
5	WCI 08002941
6	GROMMET-TUBE
7	DIVIDER
8	WCI 08017202
9	WCI 3002441
10	SEAL
11	HORIZONTAL PARTITION
12	SEAL-PARTITION HORIZONTAL
13	WCI 3012455
14	WCI 3001848
15	ARM-ACTUATER (NON-ILLUSTRATED)
16	CABLE-DOOR VENT
