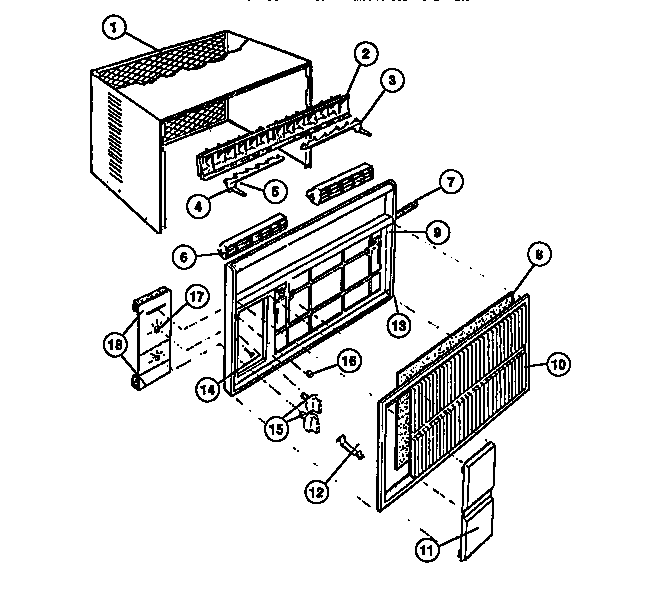

A05LH5N1 02 – CABINET FRONT & WRAPPER

Products

PositionProduct
1WCI 3201391
2VERTICAL LOUVER & LINK ASSY
3LINK-VERTICAL LOUVER RH
4LINK VERTICAL LOUVER LH
5WCI 5303001844
6LOUVER
7WCI 08007482
8FILTER
9INSERT
10PANEL
11DOOR
12WCI 5303001784
13FRONT COMPLETE (FRONT DOES NOT INCLUDE PANEL & DOOR)
14SCREW-FRONT
15WCI 5308016109
16WCI 5303002189
17WCI 3016769
18BRACKET-FRONT, (NON-ILLUSTRATED)
18TRACK
18PLATE-NAME
18SCREW-STRAP FAN
18SEAL-DIAL PLATE
