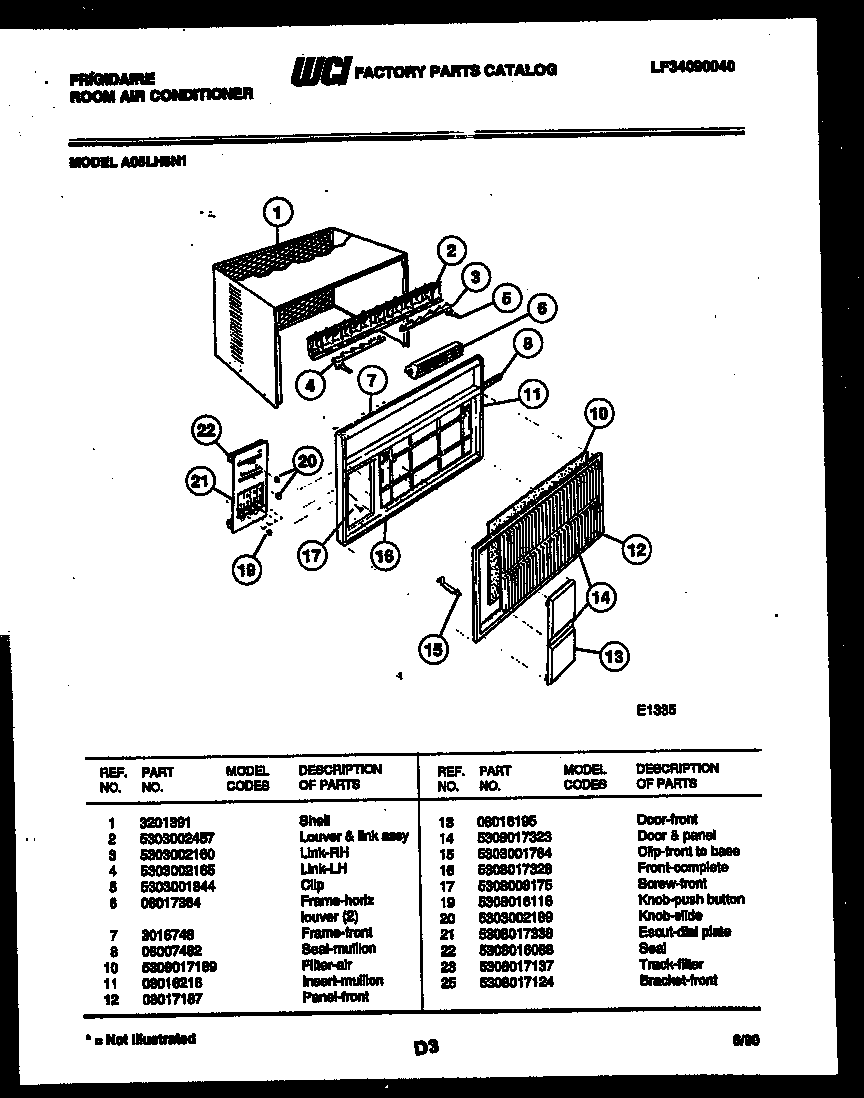

A05LH8N1 02 – CABINET PARTS

A05LH8N1 02 – CABINET PARTS

Written by

in

A05LH8N1 02 – CABINET PARTS

Products

PositionProduct
1WCI 3201391
2VERTICAL LOUVER & LINK ASSY
3LINK-VERTICAL LOUVER RH
4LINK VERTICAL LOUVER LH
5WCI 5303001844
6LOUVER
7WCI 3016748
8WCI 08007482
10FILTER
11WCI 08016216
12FRONT COMPLETE (FRONT DOES NOT INCLUDE PANEL & DOOR)
13DOOR
14PANEL, FRONT, W/DOOR
15WCI 5303001784
16WCI 5308017328
17SCREW-FRONT
19WCI 5308016116
20WCI 5303002189
21WCI 5308017338
22SEAL-DIAL PLATE
23TRACK
25BRACKET-FRONT (NON-ILLUSTRATED)
