A05LS1F1 04 – UNIT PARTS

A05LS1F1 04 – UNIT PARTS

Written by

in

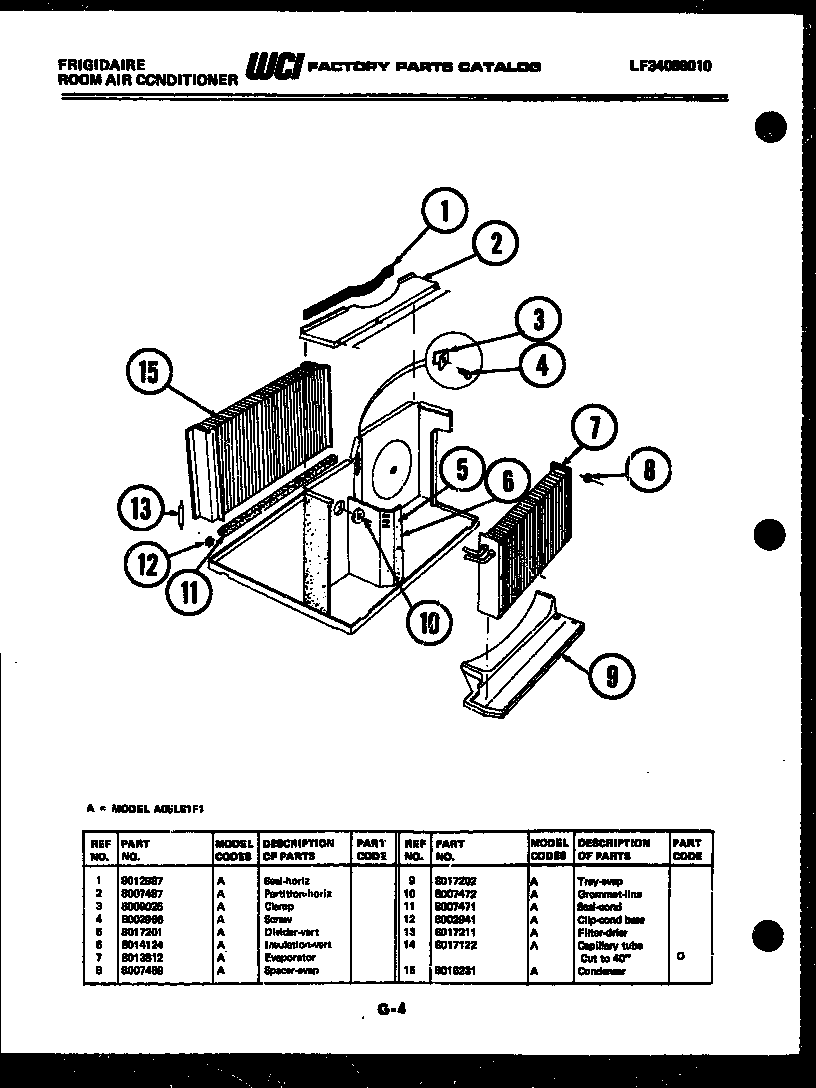

A05LS1F1 04 – UNIT PARTS

Products

Position	Product
1	SEAL
2	PARTITION, HORIZONTAL
3	WCI 8009025
4	SCREW (4)
5	DIVIDER-VERTICAL
6	INSULATION
7	WCI 8013812
8	SPACER (2)
9	TRAY-EVAPORATOR
10	GROMMET
11	SEAL
12	CLIP-CONDENSER
13	STRAINER-ASSEMBLY
14	TUBE-CAPILLARY – CUT TO 40“
15	WCI 8016231
