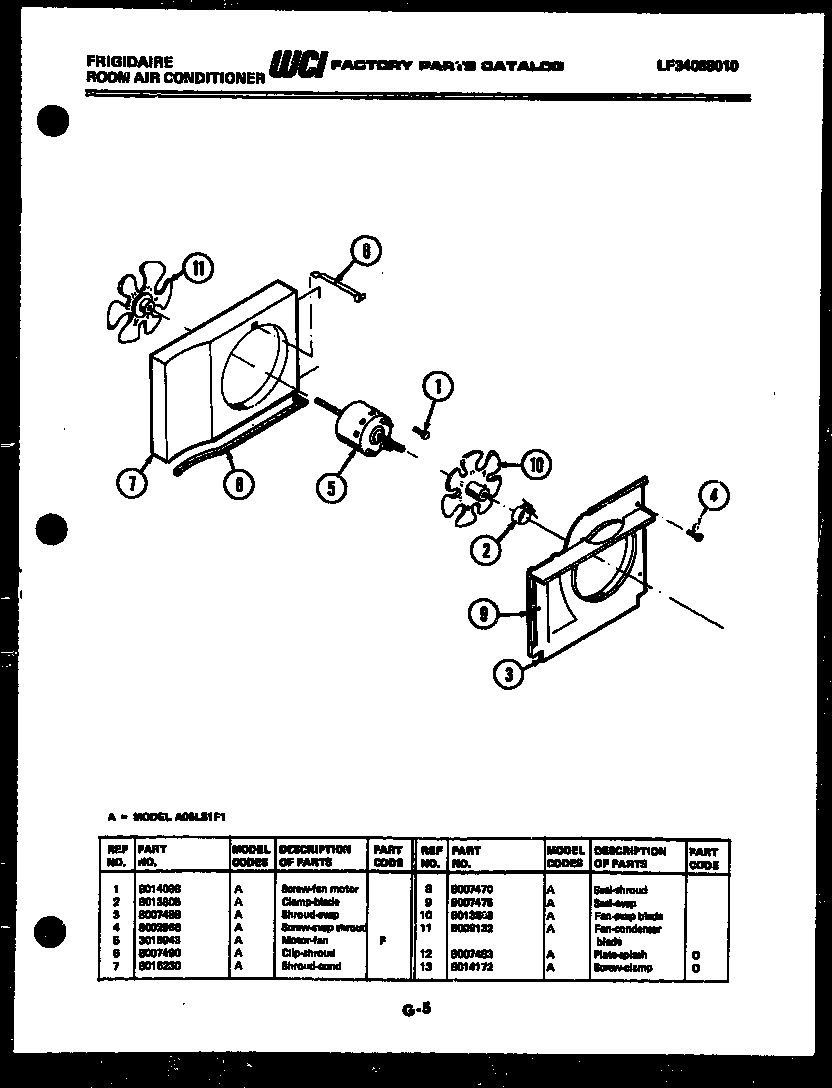

A05LS1F1 05 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	SCREW
2	CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
3	SHROUD, EVAPORATOR
4	SCREW (4)
5	WCI 3015943
6	CLIP
7	SHROUD, CONDENSER
8	SEAL
9	SEAL
10	FAN-EVAPORATOR (INCL. CLAMP)
11	FAN-CONDENSER (INCL. CLAMP)
12	WCI 8007483
13	SCREW-RETAINER (NON-ILLUSTRATED)
