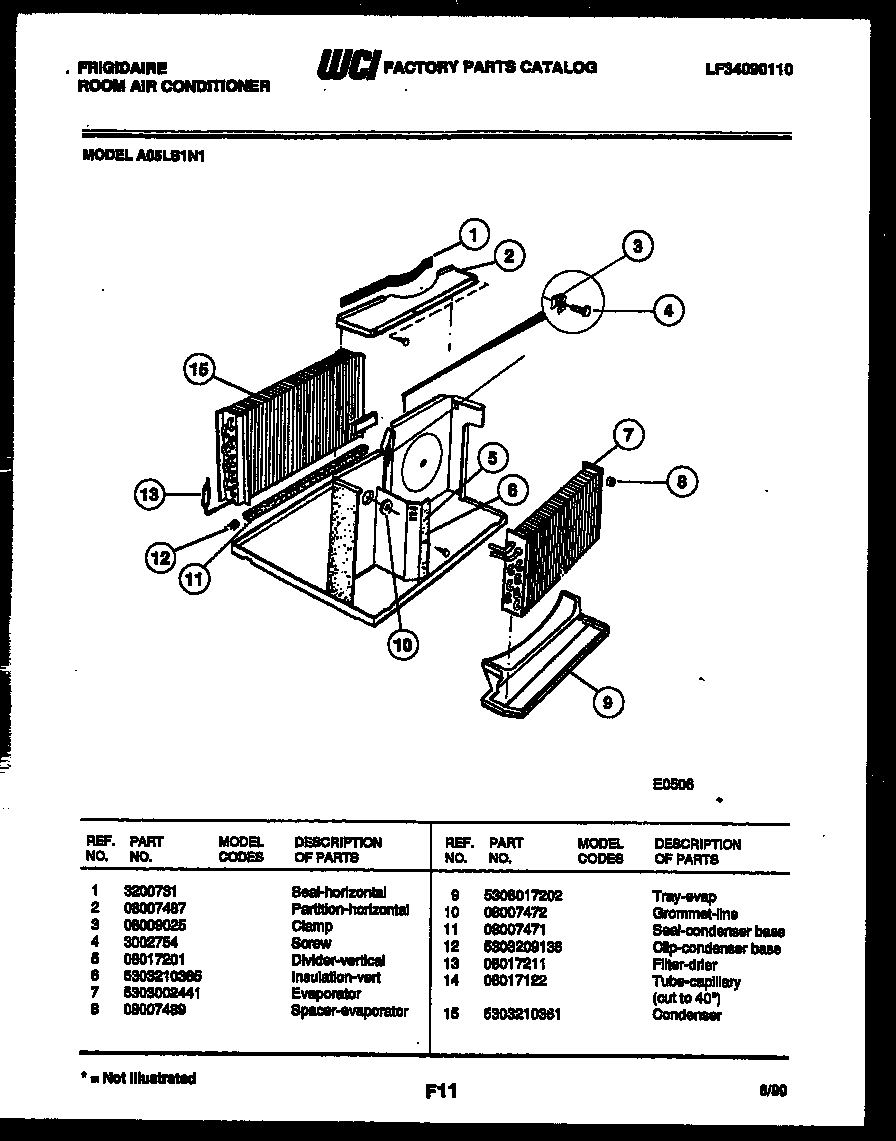

A05LS1N1 04 – UNIT PARTS

Written by

Products

Position	Product
1	INSULATION-HORIZ PART
2	HORIZONTAL PARTITION
3	CLAMP, MOTOR WIRES
4	WCI 3002754
5	DIVIDER
6	INSULATION-DIVIDER
7	WCI 5303002441
8	WCI 08007489
9	TRAY-EVAPORATOR
10	GROMMET-TUBE
11	WCI 08007471
12	WCI 5303209136
13	5300265301 Frigidaire Air Conditioner P1 Filter Drier
14	CAPILLARY TUBE (CUT TO 40“)
15	WCI 5303210361
