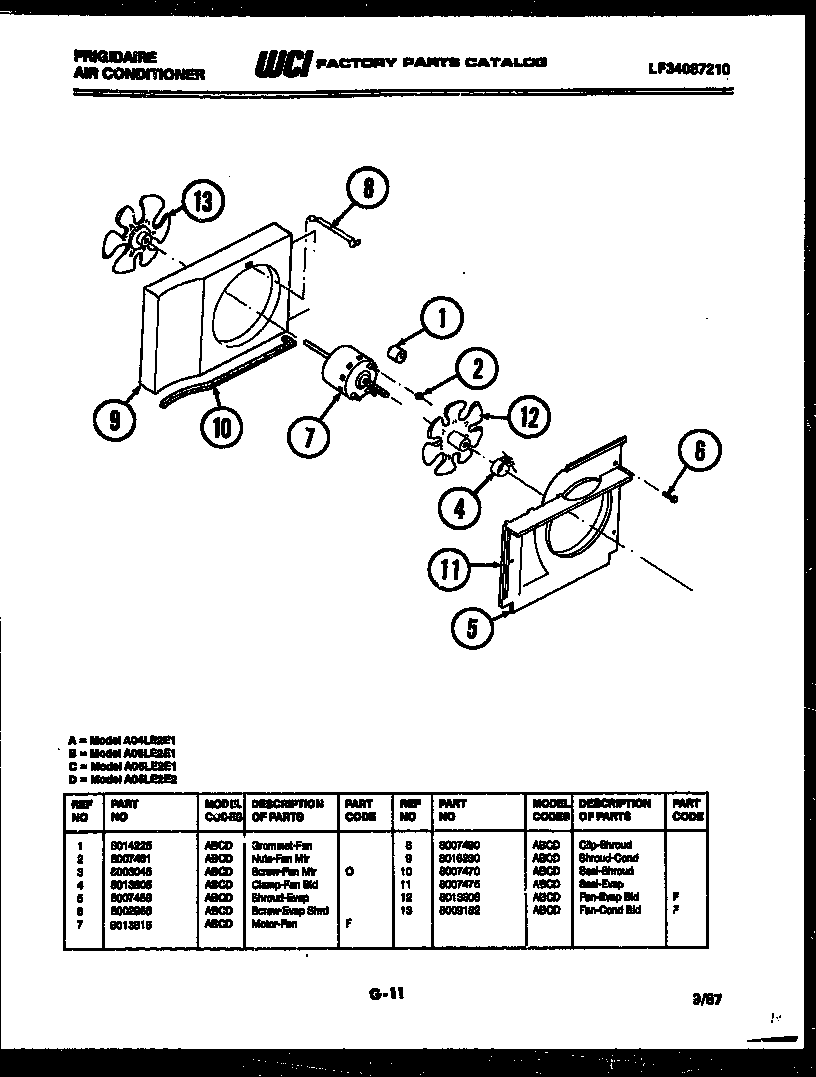

A06LE2E1 05 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	GROMMET-LOWER
2	NUT-PLATE (NON-ILLUSTRATED)
3	SCREW, FAN MOTOR MOUNTING (3)
4	CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
5	SHROUD, EVAPORATOR
6	SCREW (4)
7	WCI 8013815
8	CLIP
9	SHROUD, CONDENSER
10	SEAL
11	SEAL
12	FAN-EVAPORATOR (INCL. CLAMP)
13	FAN-CONDENSER (INCL. CLAMP)
