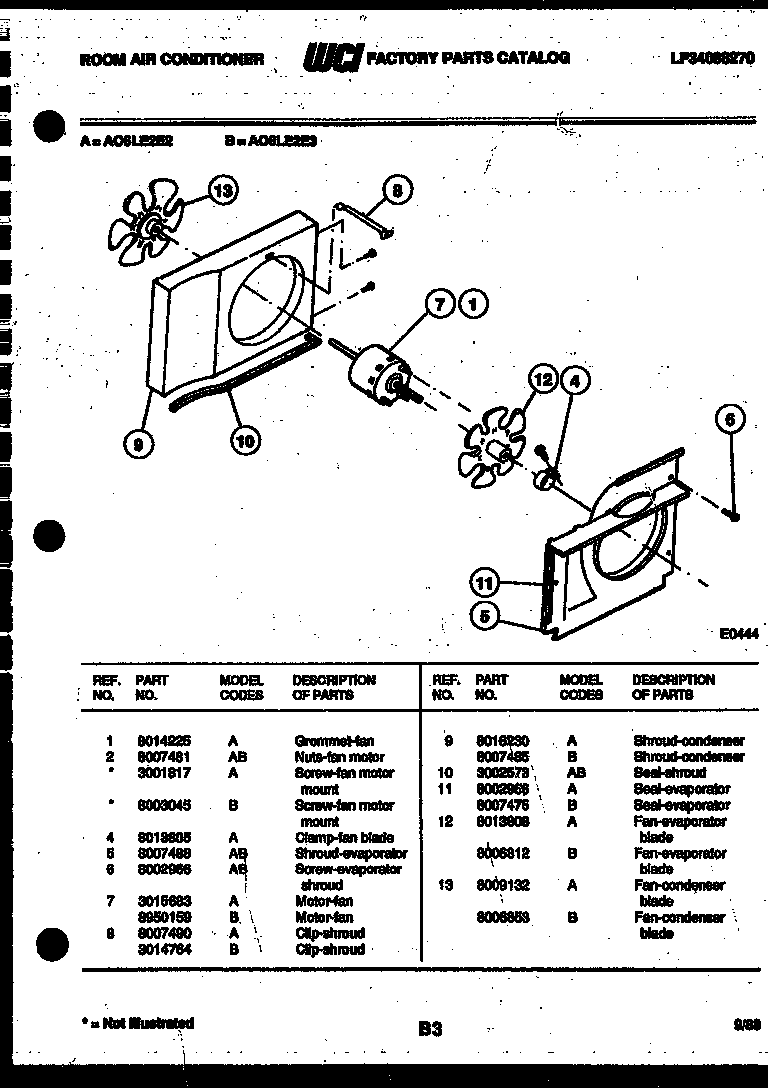

A06LE2E2 05 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	GROMMET-LOWER
2	NUT-PLATE (NON-ILLUSTRATED)
2A	SCREW- MTG MTR
4	CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
5	SHROUD, EVAPORATOR
7	WCI 3015683
8	CLIP
9	SHROUD, CONDENSER
10	SEAL-TOP
11	SCREW (4)
12	FAN-EVAPORATOR (INCL. CLAMP)
13	FAN-CONDENSER (INCL. CLAMP)
