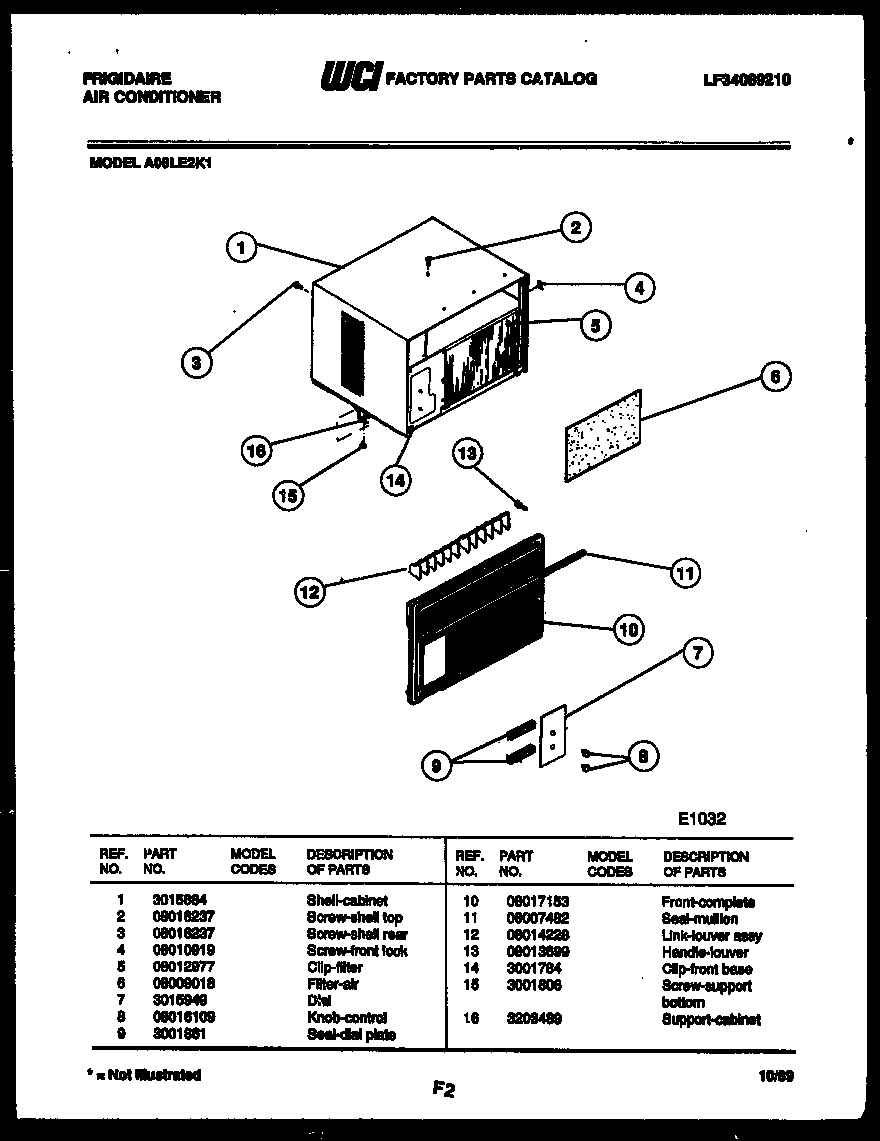

A06LE2K1 02 – CABINET PARTS

Written by

Products

Position	Product
1	WRAPPER
3	WCI 08016237
4	SCREW FRONT PANEL (NON-ILLUSTRATED)
5	CLIP-SERVICE BULB
6	FILTER-AIR
7	WCI 3015949
8	WCI 08016109
9	WCI 3001861
10	WCI 08017153
11	WCI 08007482
12	LINK LOUVER
13	HANDLE-LOUVER
14	CLIP-FRONT TO BASE
15	SCREW
16	RAIL-BOTTOM
