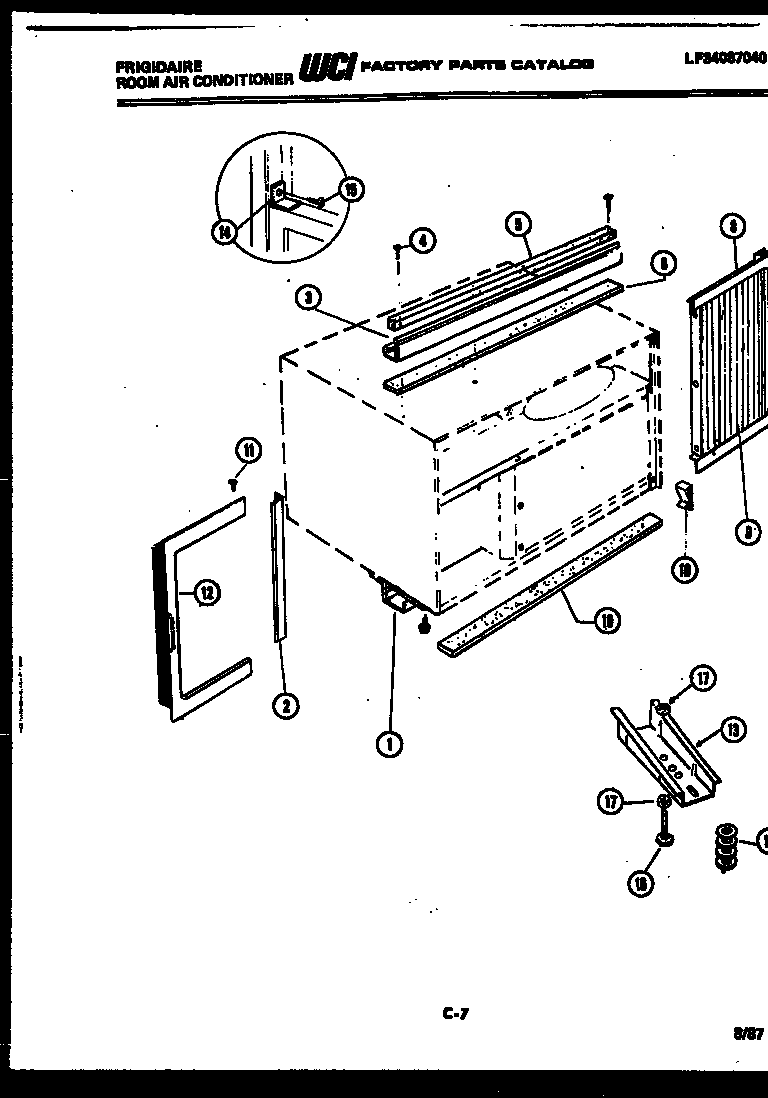

A06LE3E1 06 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
1	SUPPORT
2	RETAINER (2)
3	WCI 8007493
4	SCREW (8)
5	SEAL
6	SEAL, RAIL
7	SCREW-RETAINER (NON-ILLUSTRATED)
8	CHANNEL, RH
9	PANEL, ACCORDIAN
10	SCREW (2)
11	SCREW (2)
12	CHANNEL, LH
13	WCI 8012989
14	STOP, SASH
15	SCREW
16	SCREW-ADJUSTABLE
17	NUT
18	INSERT, MULLION
19	SEAL-SASH
