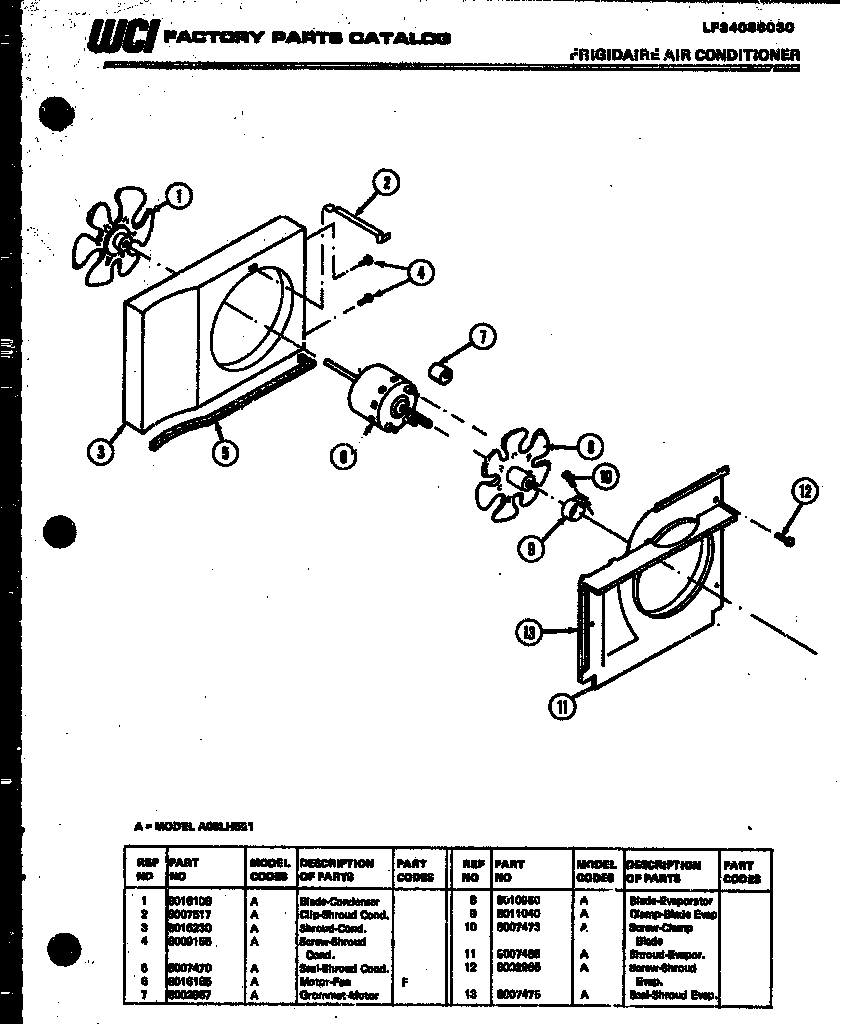

A06LH5E1 05 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	FAN, CONDENSER (INCL. CLAMP AND SCREW)
2	WCI 8007517
3	SHROUD, CONDENSER
4	SCREW, GROUND TO CONTROL PANEL
5	SEAL
6	WCI 8016165
7	GROMMET (3)
8	FAN, EVAPORATOR (INCL. CLAMP)
9	CLAMP
10	SCREW
11	SHROUD, EVAPORATOR
12	SCREW (4)
13	SEAL
