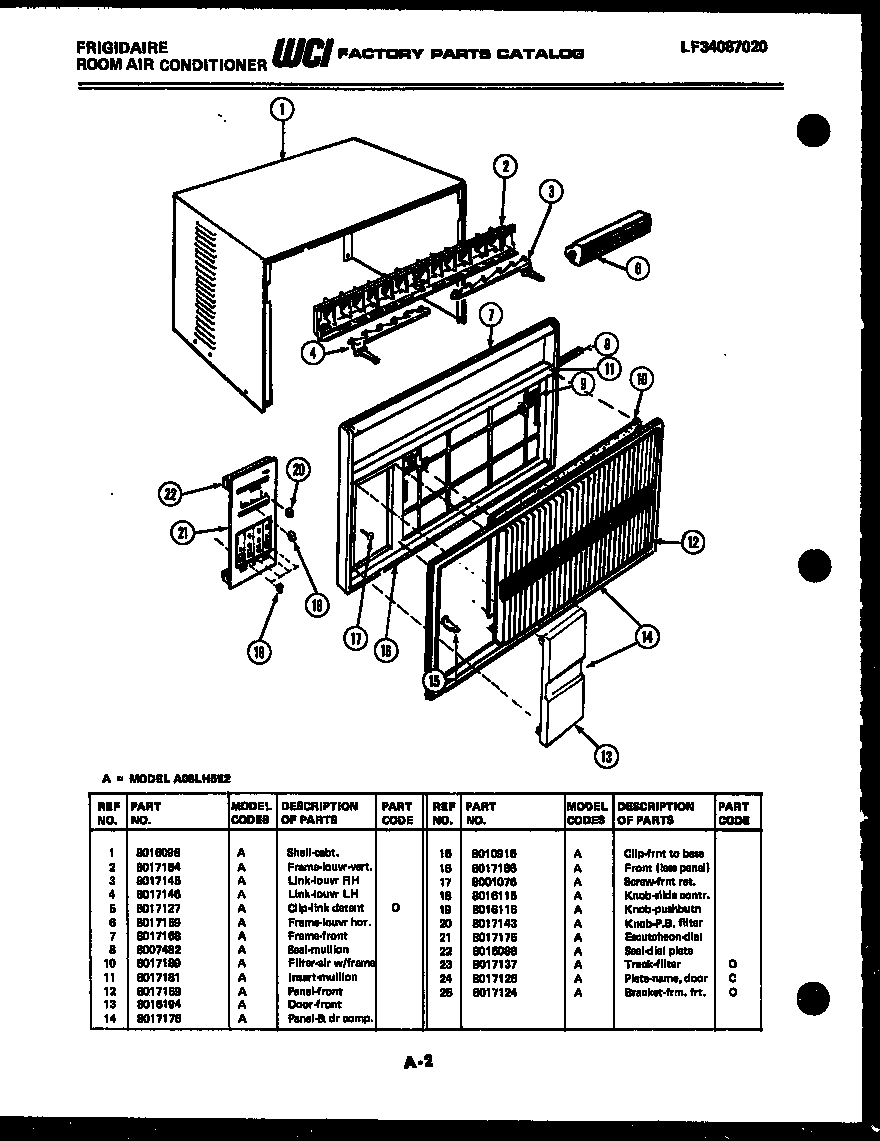

A06LH5E2 02 – CABINET PARTS

Products

Position	Product
*19834	PLATE-NAME
*19834	TRACK-FILTER
*19834	BRACKET-FRONT (NON-ILLUSTRATED)
1	SHELL
2	FRAME-LOUVER VERTICAL
3	WCI 8017145
4	WCI 8017146
5	CLIP-LINK DETENT
6	WCI 8017159
7	WCI 8017168
8	SEAL
10	FILTER-AIR WITH FRAME
11	WCI 8017181
12	WCI 8017169
13	DOOR, CONTROL
14	PANEL AND DOOR COMPLETE
15	CLIP (2)
16	FRONT (LESS PANEL)
17	SCREW-FRONT
18	KNOB-SLIDE CONTROL
19	WCI 8016116
20	KNOB-SLIDE
21	ESCUTCHEON-DIAL
22	SEAL-ESCUTCHEON
