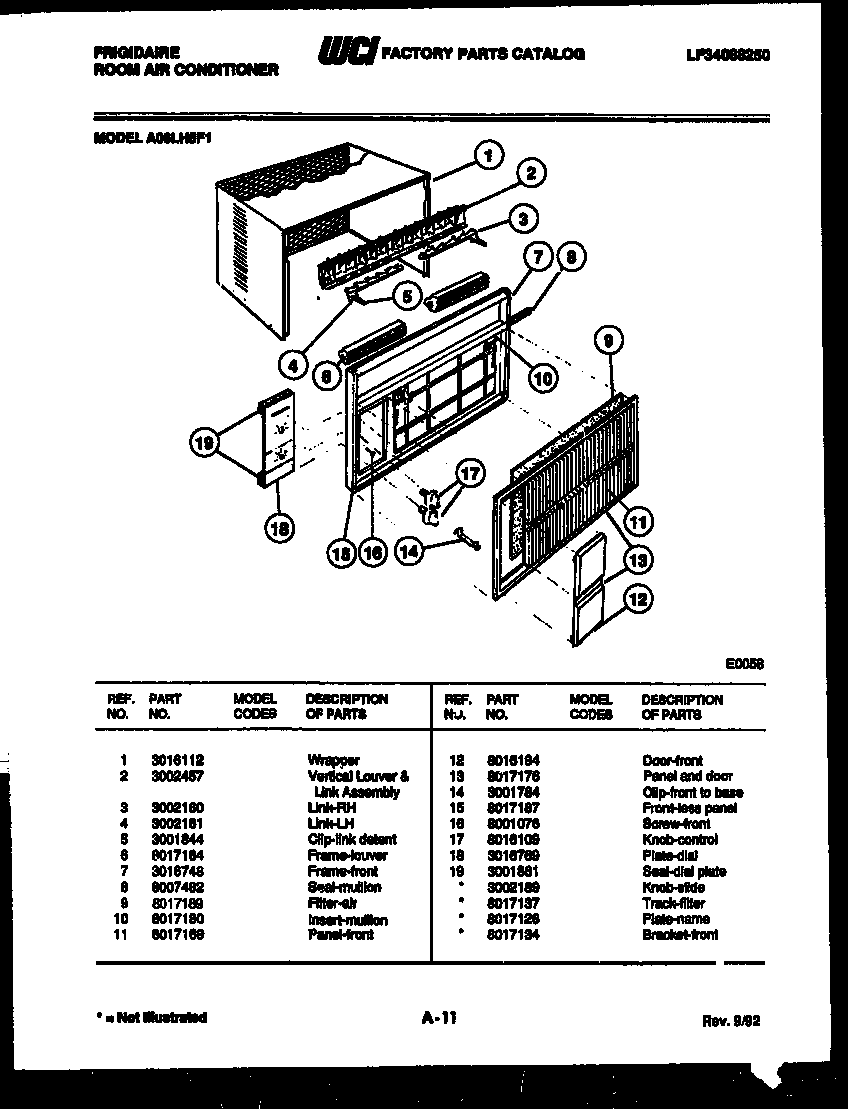

A06LH5F1 02 – CABINET PARTS

Products

Position	Product
*17478	SEAL-TOP FRAME HANDLE (NON-ILLUSTRATED)
*17478	WCI 3002189
*17478	TRACK-FILTER
*17478	PLATE-NAME
1	SHELL-CABINET
2	VERTICAL LOUVER & LINK ASSY
3	LINK-VERT LOUVER RH
4	LINK-VERT LOUVER LH
5	CLIP-DETENT
6	FRAME-LOUVER VERTICAL
7	WCI 3016748
8	SEAL
9	FILTER-AIR WITH FRAME
10	WCI 8017180
11	WCI 8017169
12	DOOR, CONTROL
13	PANEL AND DOOR COMPLETE
14	CLIP-FRONT TO BASE
15	WCI 8017187
16	SCREW-FRONT
17	WCI 8016109
18	WCI 3016769
19	WCI 3001861
