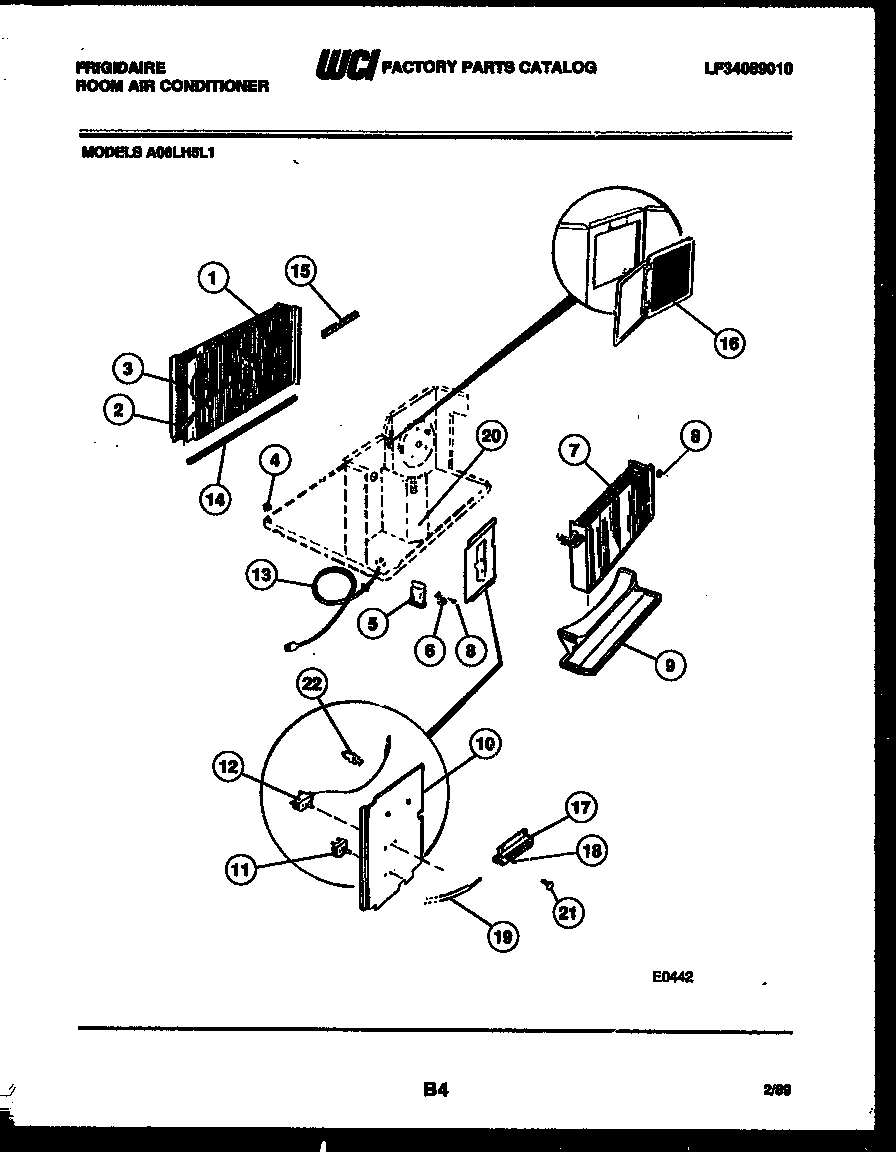

A06LH5L1 03 – ELECTRICAL PARTS

Products

Position	Product
*12212	INSULATION-HORIZ PART
*12211	HORIZONTAL PARTITION
*12212	SCREW-CONT AND SWITCH MTG (NON-ILLUSTRATED)
*12213	SLEEVE-CAPILLARY TUBE
1	WCI 3002245
2	5300265301 Frigidaire Air Conditioner P1 Filter Drier
3	WCI 3001745
4	WCI 08002941
5	WCI 3001903
6	STRAP-CAPACITOR
7	WCI 3002441
8	SCREW-STRAP
9	WCI 08017202
10	WCI 3015947
11	WCI 3015961
12	CONTROL
13	CORD-SERVICE
14	WCI 08007471
15	SEAL
16	WCI 3012455
17	WCI 3001848
18	ARM-ACTUATER (NON-ILLUSTRATED)
19	CABLE-DOOR VENT
20	DIVIDER
21	SCREW
22	WCI 3002169
