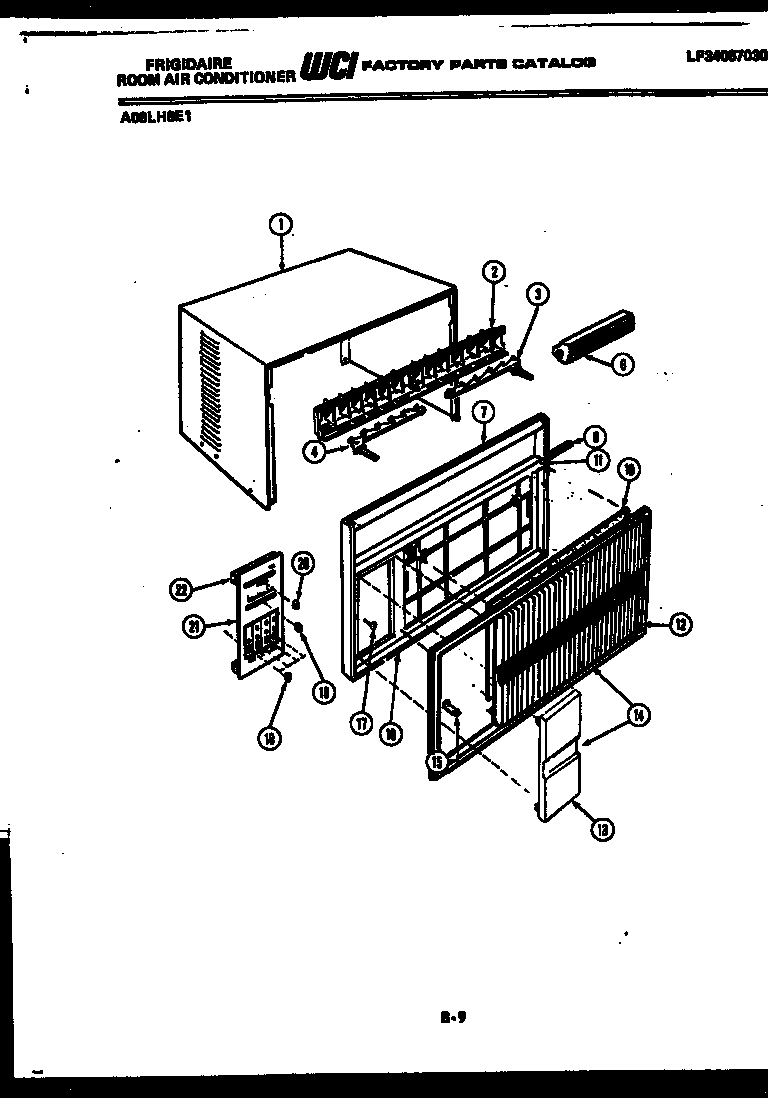

A06LH8E1 02 – CABINET PARTS

Products

Position	Product
1	SHELL
2	FRAME-LOUVER VERTICAL
3	WCI 8017145
4	WCI 8017146
5	CLIP-LINK DETENT
6	WCI 8017159
7	WCI 8017168
8	SEAL
10	FILTER-AIR WITH FRAME
11	INSERT, MULLION
12	WCI 8017169
13	DOOR, CONTROL
14	DOOR & PANEL
15	CLIP (2)
16	WCI 8017728
17	SCREW-FRONT
18	KNOB-SLIDE CONTROL
19	WCI 8016116
20	WCI 8017356
21	ESCUT.-DIAL PLATE
22	SEAL-ESCUTCHEON
23	TRACK-FILTER
24	PLATE-NAME
25	BRACKET-FRONT (NON-ILLUSTRATED)
