A08LE2E2 04 – AIR HANDLING PARTS

A08LE2E2 04 – AIR HANDLING PARTS

Written by

in

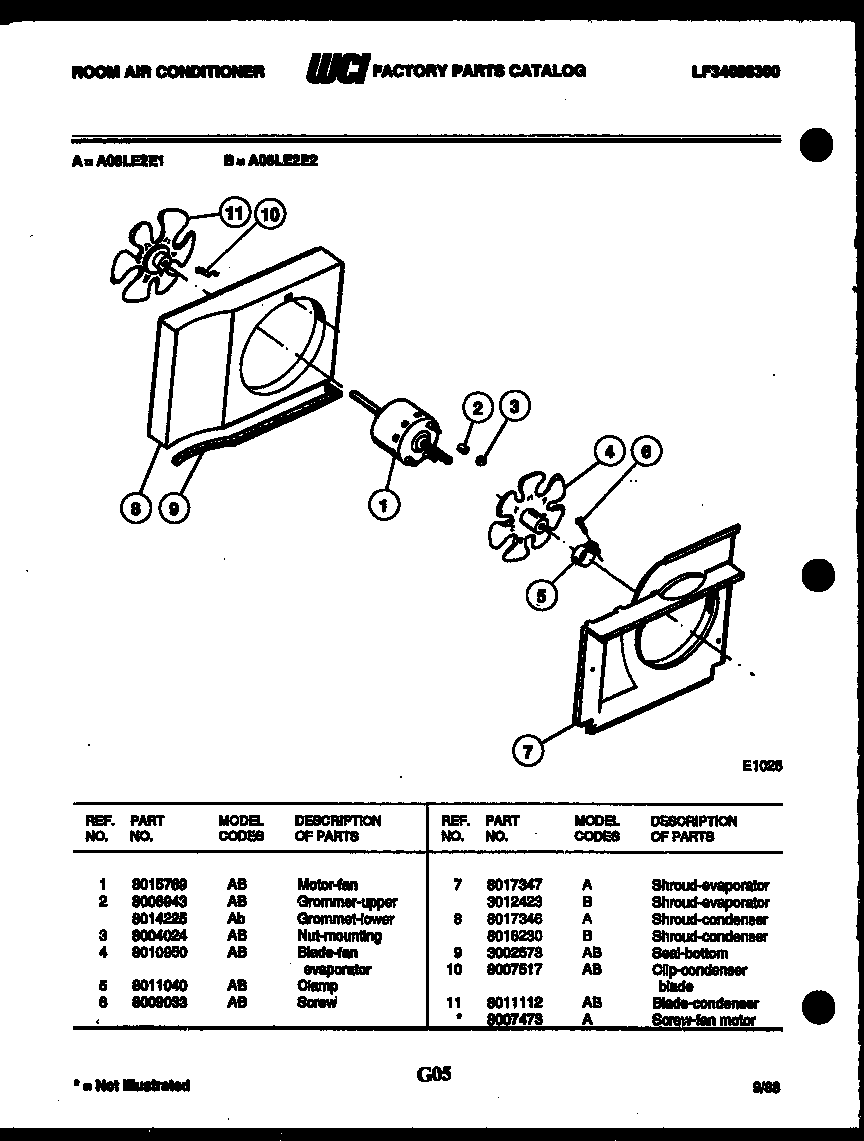

A08LE2E2 04 – AIR HANDLING PARTS

Products

Position	Product
1	WCI 8015769
2A	GROMMET-LOWER
2	WCI 8006943
3	NUT (3)
4	FAN, EVAPORATOR (INCL. CLAMP)
5	CLAMP
6	GROMMET (3)
7	SHROUD
8	SHROUD, CONDENSER
9	SEAL-TOP
10	WCI 8007517
11	FAN, CONDENSER (INCL. CLAMP)
