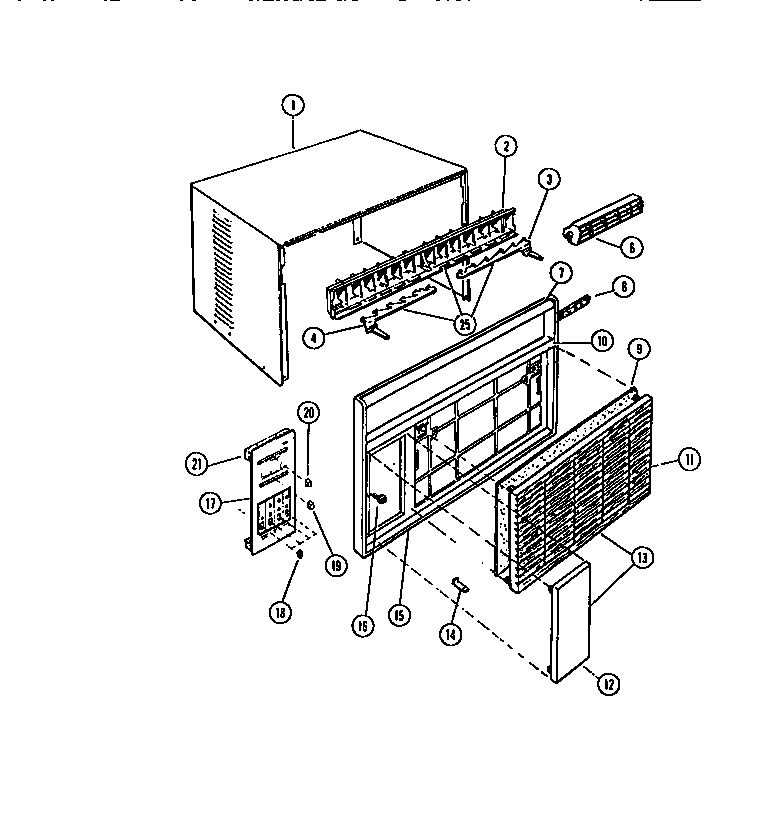

A08LH5E2 02 – CABINET PARTS

Products

Position	Product
1	WCI 8016099
2	FRAME-LOUVER VERTICAL
3	WCI 8017145
4	WCI 8017146
5	CLIP-LINK DETENT
6	FRAME-HORIZONTAL LOUVER
8	SEAL
9	FILTER-AIR WITH FRAME
10	WCI 8017181
11	WCI 8017169
12	DOOR, CONTROL
13	PANEL AND DOOR COMPLETE
14	CLIP (2)
15	FRONT (LESS PANEL)
16	SCREW-FRONT
17	ESCUTCHEON-DIAL
18	WCI 8016116
19	WCI 8017356
20	KNOB-SLIDE
21	SEAL-ESCUTCHEON
22	TRACK-FILTER
23	PLATE-NAME
24	BRACKET-FRONT (NON-ILLUSTRATED)
25	LOUVR & LINK ASSY
