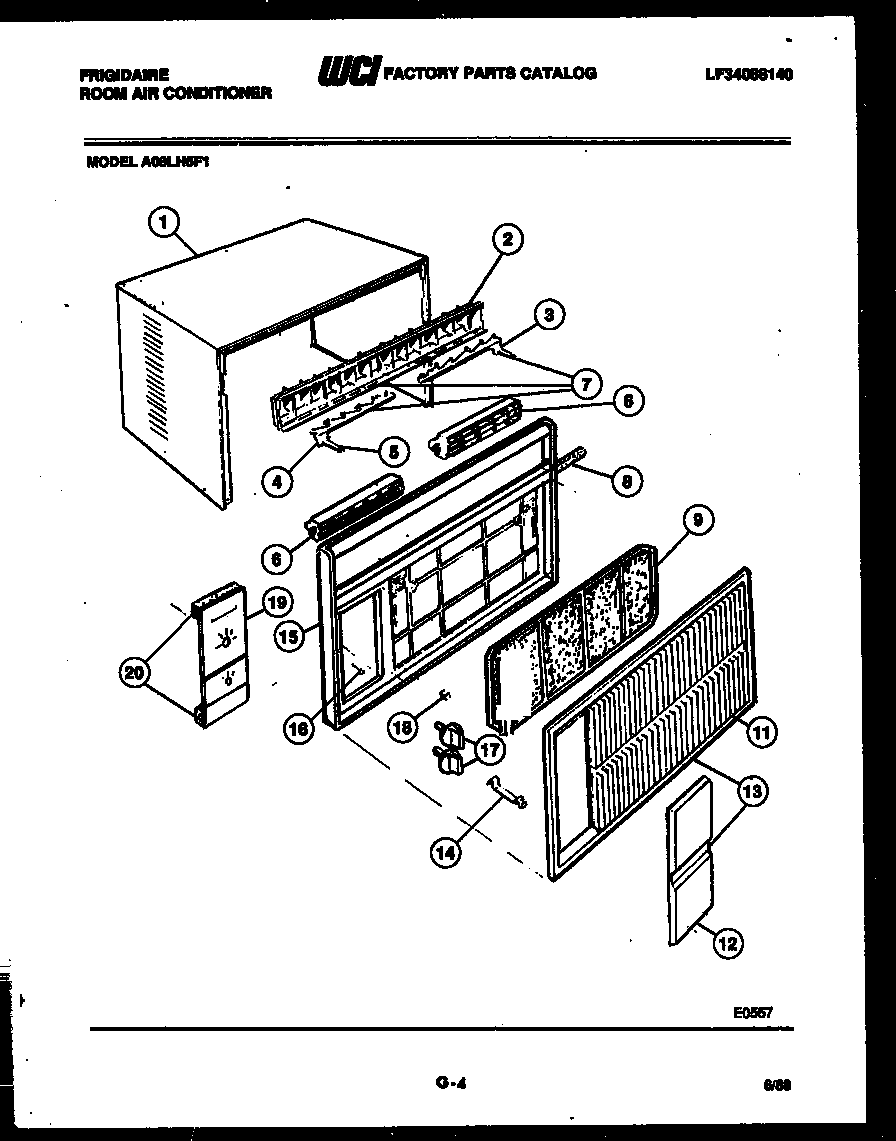

A08LH5F1 02 – CABINET PARTS

Products

Position	Product
*14242	SCREW-STRAP FAN
*14241	PLATE-NAME
*14242	BRACKET-FRONT (NON-ILLUSTRATED)
*14241	TRACK-FILTER
1	SHELL-CABINET
2	FRAME-LOUVER VERTICAL
3	WCI 8017145
4	WCI 8017146
5	CLIP-DETENT
6	FRAME-HORIZONTAL LOUVER
7	LOUVR & LINK ASSY
8	SEAL
9A	WCI 8017180
9	FILTER-AIR WITH FRAME
11	WCI 8017169
12	DOOR, CONTROL
13	PANEL AND DOOR COMPLETE
14	CLIP (2)
15	WCI 8017187
16	SCREW-FRONT
17	WCI 8016109
18	WCI 8017356
19	WCI 3016769
20	SEAL
