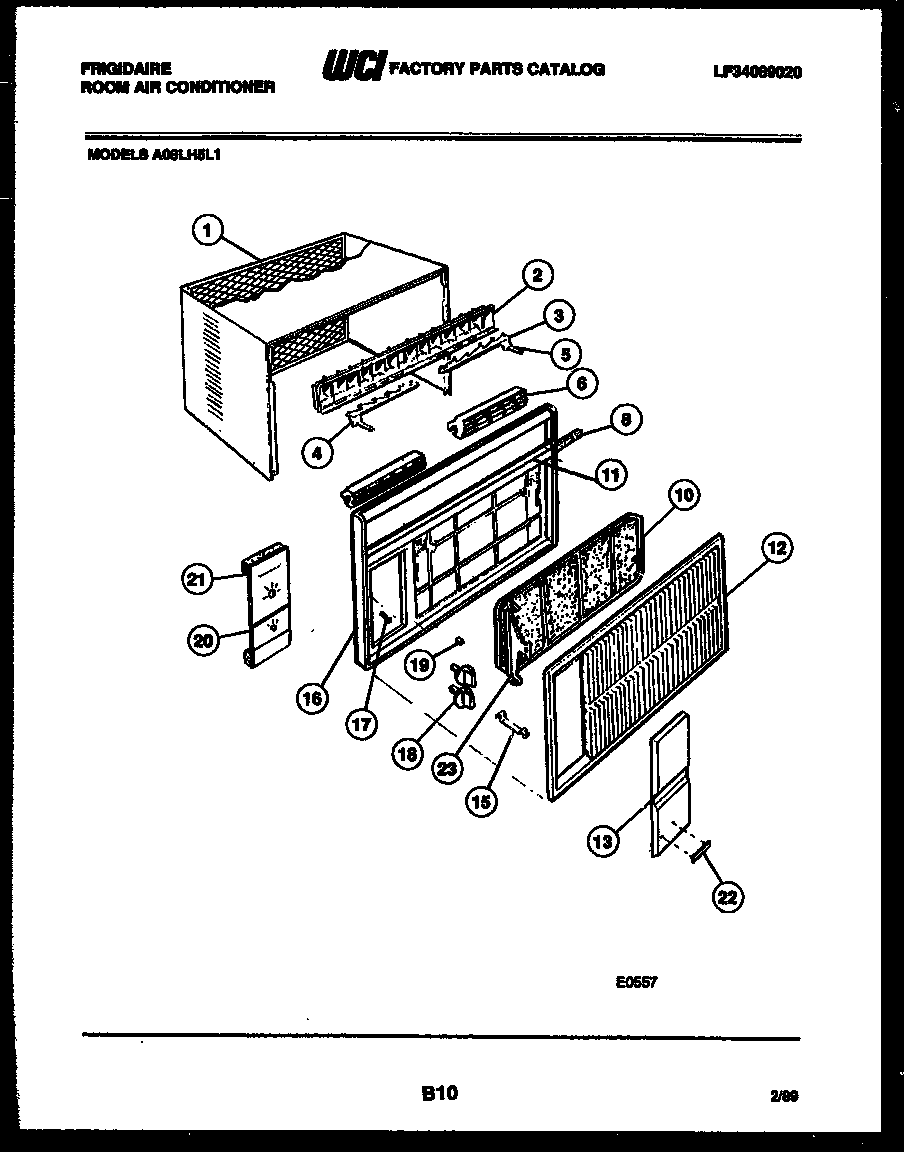

A08LH5L1 02 – CABINET PARTS

Products

Position	Product
*12819	BRACKET-FRONT, (NON-ILLUSTRATED)
1	WCI 3201391
2	VERTICAL LOUVER & LINK ASSY
3	LINK-VERT LOUVER RH
4	LINK-VERT LOUVER LH
5	CLIP-DETENT
6	LOUVER
8	WCI 08007482
10	WCI 08017189
11	INSERT
12	PANEL W/ DOOR (NON-ILLUSTRATED)
13	DOOR
15	CLIP-FRONT TO BASE
16	FRONT COMPLETE (FRONT DOES NOT INCLUDE PANEL & DOOR)
17	SCREW-FRONT MTG
18	WCI 08016109
19	WCI 3002189
20	WCI 3016769
21	WCI 3001861
22	PLATE-NAME
23	WCI 08017137
