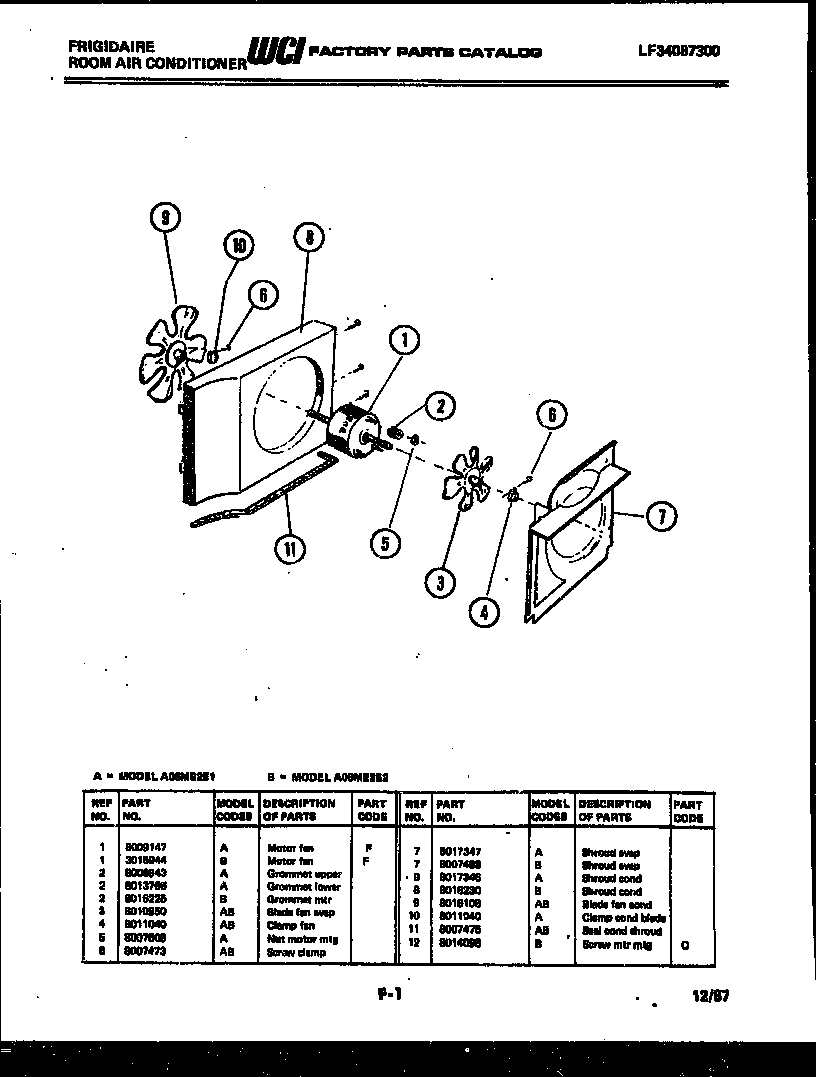

A08ME2E1 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 8009147
2	WCI 8006943
2	WCI 8013766
3	FAN, EVAPORATOR (INCL. CLAMP)
5	NUT (3)
6	SCREW
7	WCI 8017347
8	WCI 8017346
9	FAN, CONDENSER (INCL. CLAMP AND SCREW)
10	CLAMP
11	SEAL
