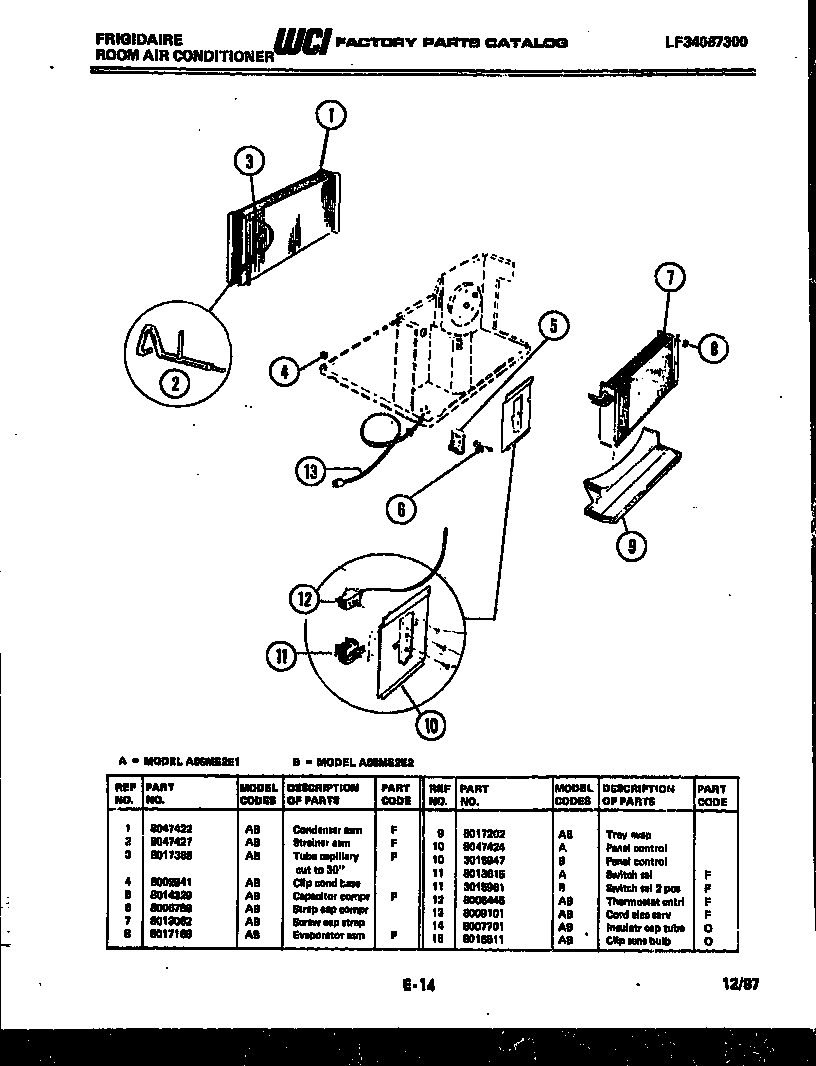

A08ME2E2 03 – UNIT PARTS

Products

Position	Product
1	CONDENSER ASM
2	WCI 8047427
3	WCI 8017388
4	CLIP-CONDENSER
5	CAPACITOR-RUN
6	CLAMP, CAPACITOR
7	SCREW
8	WCI 8017166
9	TRAY-EVAPORATOR
10	WCI 3015947
11	WCI 3015961
12	THERMOSTAT-TEMPERATURE CONTROL
13	CORD-SERVICE
14	INSULATOR-CAP TUBE
15	CLIP (2)
