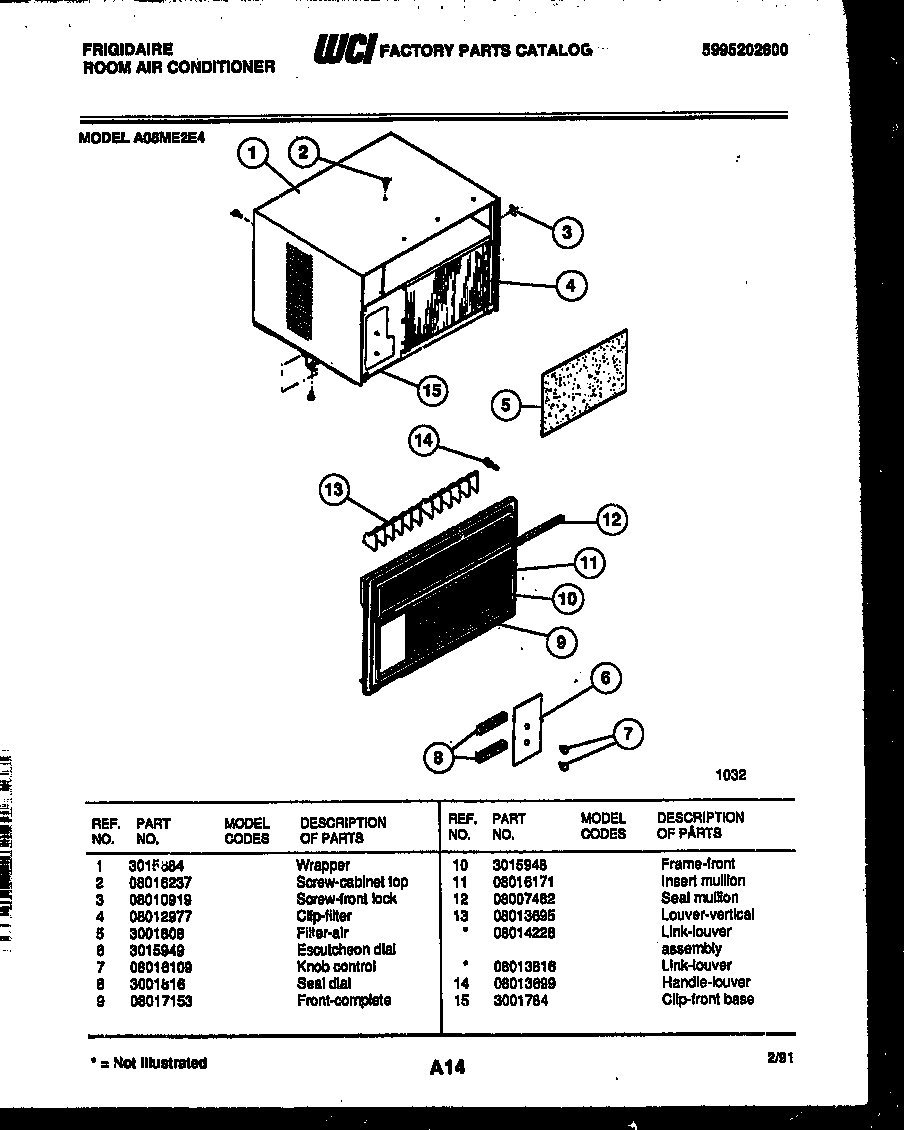

A08ME2E4 02 – CABINET PARTS

Written by

Products

Position	Product
1	WRAPPER
2	WCI 08016237
3	SCREW FRONT PANEL (NON-ILLUSTRATED)
4	CLIP-SERVICE BULB
5	WCI 3001808
6	WCI 3015949
7	WCI 08016109
8	WCI 3001816
9	WCI 08017153
10	FRAME FRONT
11	WCI 08016171
12	WCI 08007482
13B	LINK-LOUVERS
13	LOUVER-VERTICAL (6)
13A	LINK LOUVER
14	HANDLE-LOUVER
15	CLIP-FRONT TO BASE
