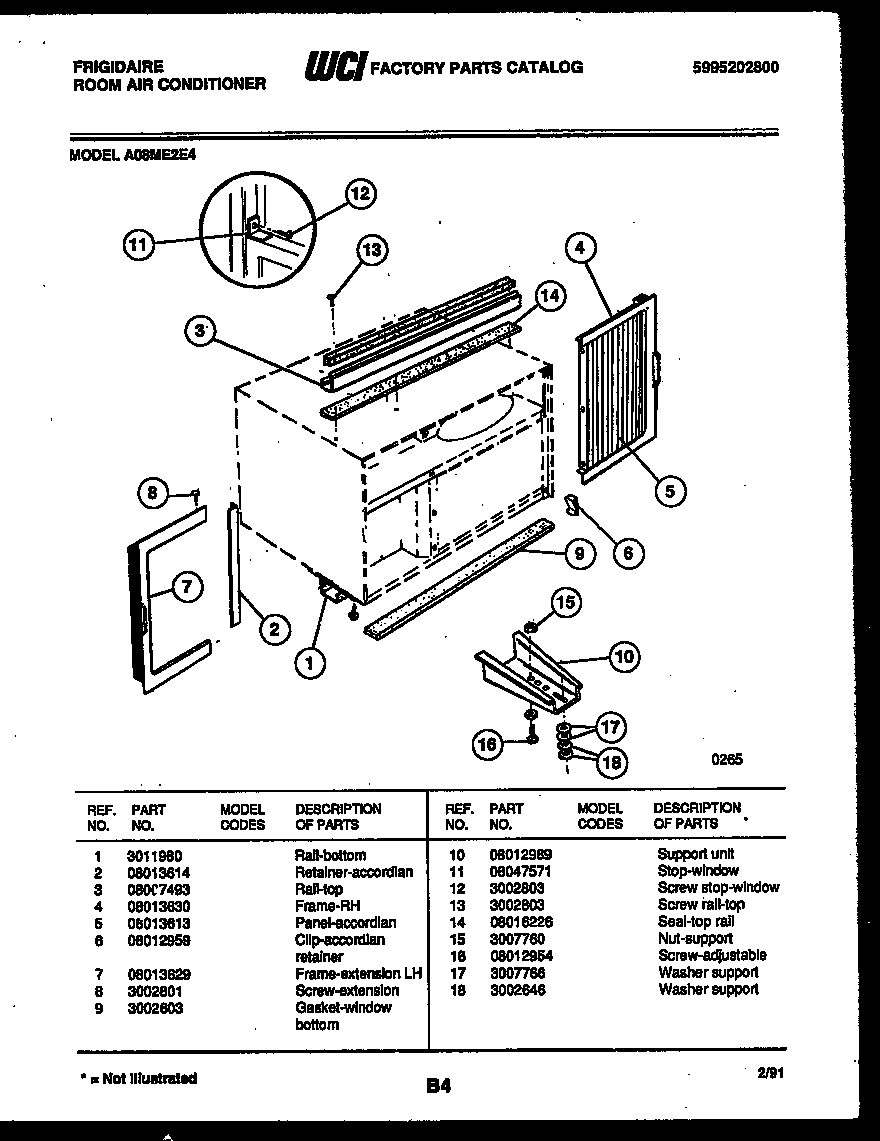

A08ME2E4 06 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
1	RAIL-BOTTOM
2	WCI 08013614
3	RAIL-TOP
4	FRAME-EXTENSION RH
5	CLOSURE-ACCORDION
6	CLIP
7	FRAME, EXTENSION, LH
8	WCI 3002801
9	5304407729 Frigidaire Air Conditioner Seal
10	SUPPORT
11	BRACKET-WINDOW STOP
13	SCREW-WOOD
14	WCI 08016226
15	WCI 3007760
16	SCREW-ADJ
17	134716700 Frigidaire Washer
18	WASHER SPACER
