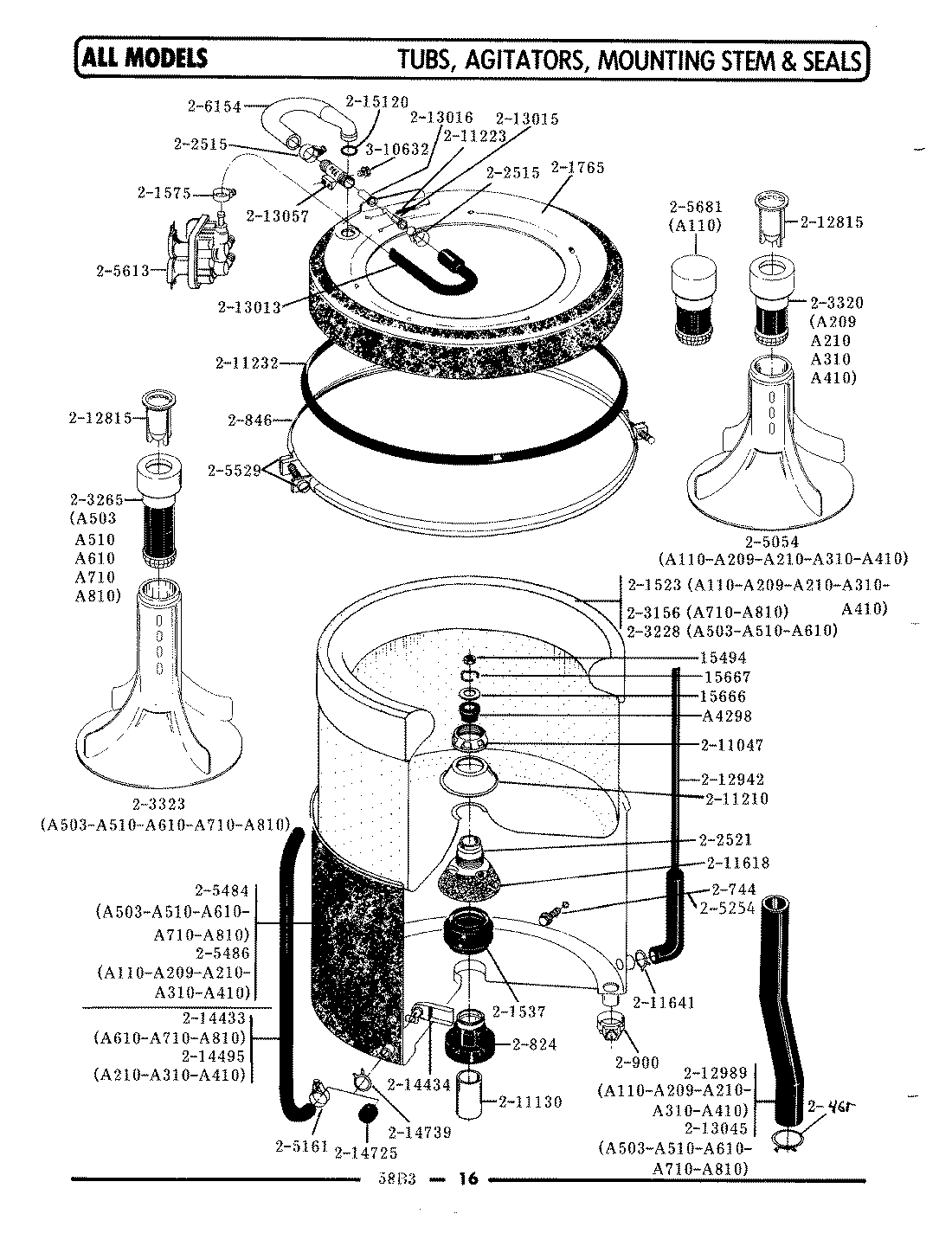

A110 09 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
1	MAY A04298
2	MAY Y015494
3	WPY015666 Whirlpool Washer Retainer
4	MAY Y015667
5	MAY Y054867
6	W10175939 Whirlpool Bolt Assembly
7	6-2040130 Whirlpool Washer Tub Bearing Kit
9	MAY 200900
10	MAY 201523
11	MAY 201537
12	WP596669 Whirlpool Hose Clamp
13	MAY 201765
15	MAY 202521
16	MAY 203156
17	PART NOT USED
18	MAY 203265
19	MAY 203320
20	MAY 203323
21	MAY 204012
23	MAY 205054
24	WP489503 Whirlpool Refrigerator Clamp
25	PART NOT USED
26	MAY 205486
28	205613 Whirlpool Washer Water Inlet Valve
29	MAY 205681
30	MAY 206154
31	WP6-2110472 Whirlpool Nut Clamp
32	MAY 211100
33	MAY 211130
34	MAY 211210
35	MAY 211223
36	WP211232 Whirlpool Seal
37	MAY 211618
38	WP285655 Whirlpool Hose Clamp
39	MAY 212815
40	MAY 212942
41	WPY212989 Whirlpool Outer Hose
42	WP213013 Whirlpool Injector Hose
43	WP213015 Whirlpool Nozzle Injector Tube
44	WP216201 Whirlpool Rubber Injector Valve
45	WP213045 Whirlpool Dishwasher Tub to Pump Hose
46	MAY 213057
47	WP214433 Whirlpool Inlet Tube
48	MAY 214434
49	MAY 214495
50	MAY 214725
52	MAY 200461
53	MAY 215120
54	MAY Y310632
