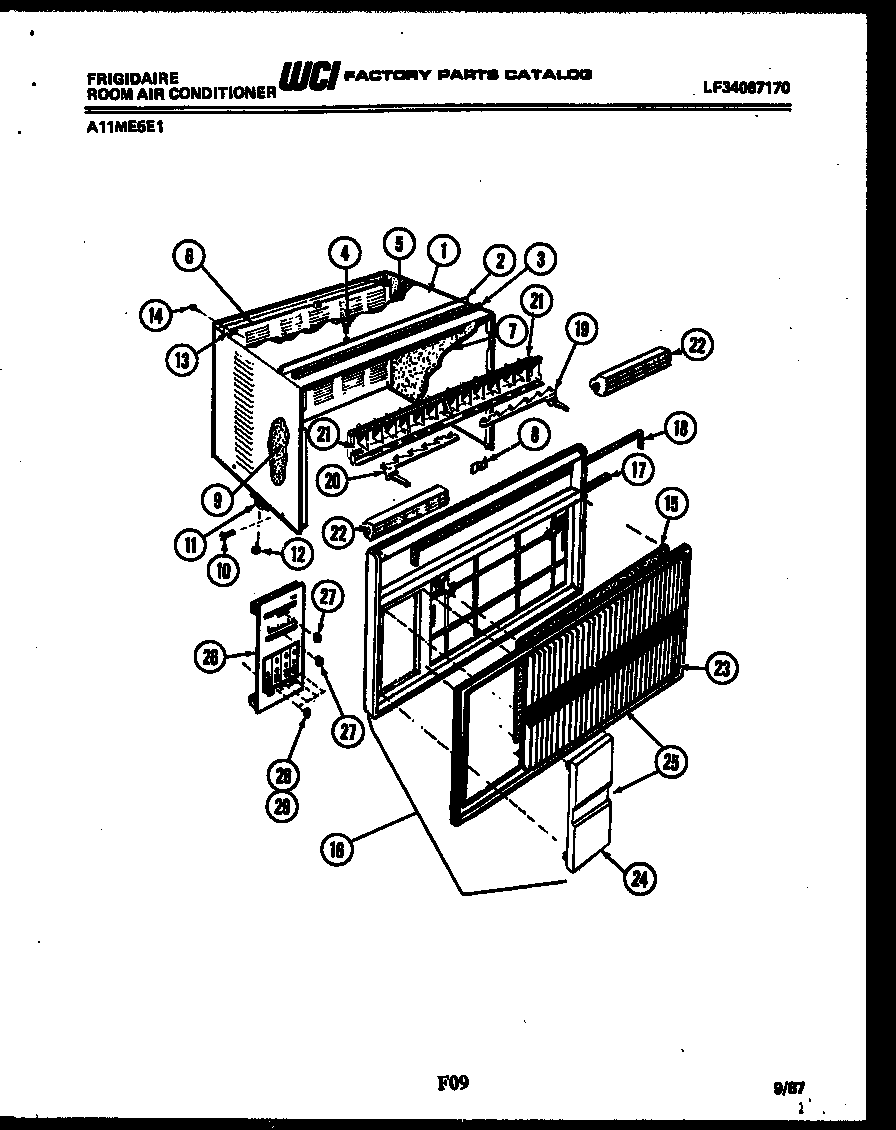

A11ME5E1 02 – CABINET PARTS

Products

Position	Product
1	WCI 8016100
2	SUPPORT-TOP
3	SEAL
4	SCREW
5	WCI 8007542
6	PANEL-REAR
7	INSULATION-SHELL, R. SIDE
8	CLIP-FRONT TO BASE
9	INSULATION-SHELL, L. SIDE
11	SUPPORT
12	SCREW (2)
13	NUT
14	SCREW
15	WCI 8017249
16	WCI 8017248
17	WCI 8014101
18	SEAL-CABINET, FRONT
19	LINK-VERT. LOUVR R.H.
20	LINK-VERT. LOUVR L.H.
21	WCI 8017278
22	FRAME-HORZ. LOUVR
23	PANEL
24	DOOR
25	PANEL-DOOR ASSEMBLY
26	ESCUTCHEON
27	KNOB-SLIDE CONTROL
28	WCI 8016116
29	KNOB-SLIDE
