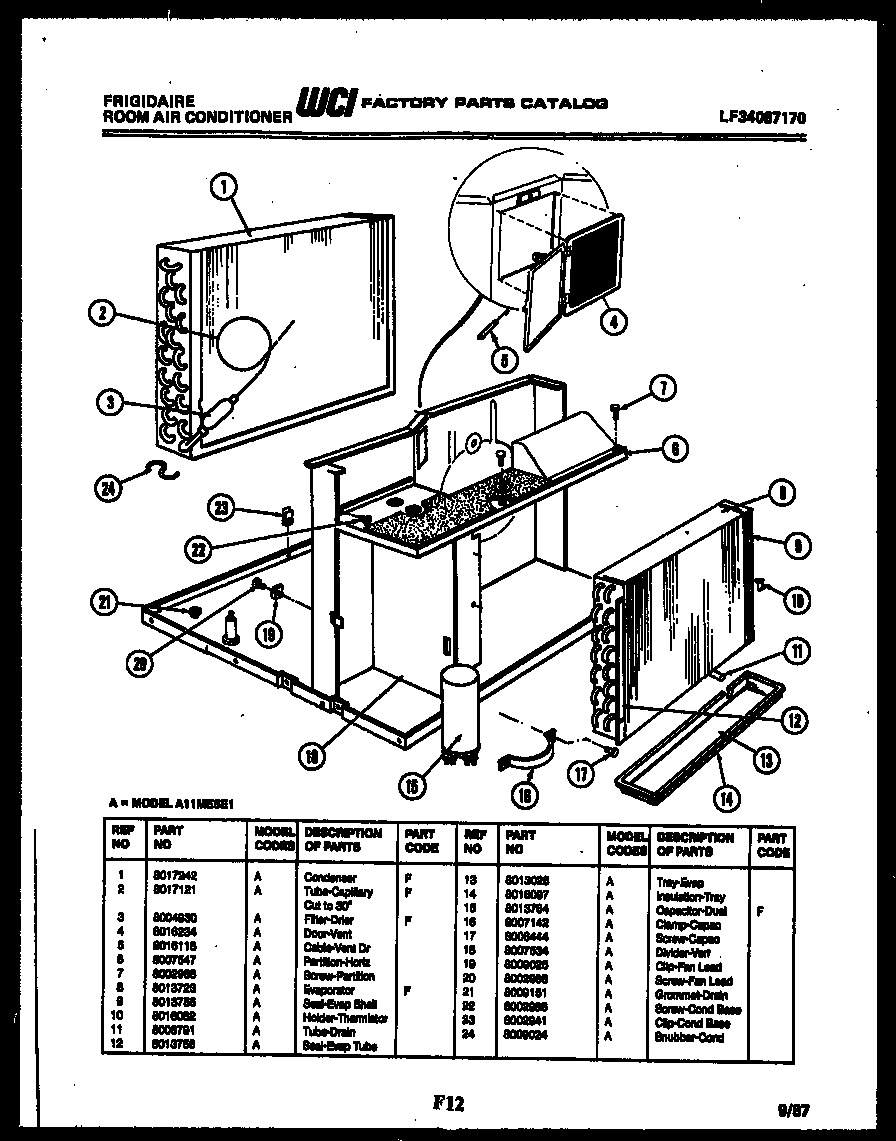

A11ME5E1 04 – UNIT PARTS

Written by

Products

Position	Product
1	WCI 8017242
2	TUBE-CAPILLARY (CUT TO 35“)
3	DRIER
4	WCI 8016234
5	CABLE, VENT DOOR
6	PARTITION-HORIZONTAL
8	WCI 8013723
9	SEAL, EVAPORATOR BRACKET, WRAPPER
10	HOLDER-THERMSTOR (NON-ILLUSTRATED)
11	WCI 8006791
12	SEAL, EVAPORATOR BRACKET, CONTACT TUBE
13	TRAY
14	INSULATION
15	CAPACITOR
16	CLAMP-CAPACITOR
17	SCREW
18	DIVIDER-VERTICAL
19	WCI 8009025
21	GROMMET, BASE DRAIN
22	SCREW (4)
23	CLIP-CONDENSER
24	SNUBBER
