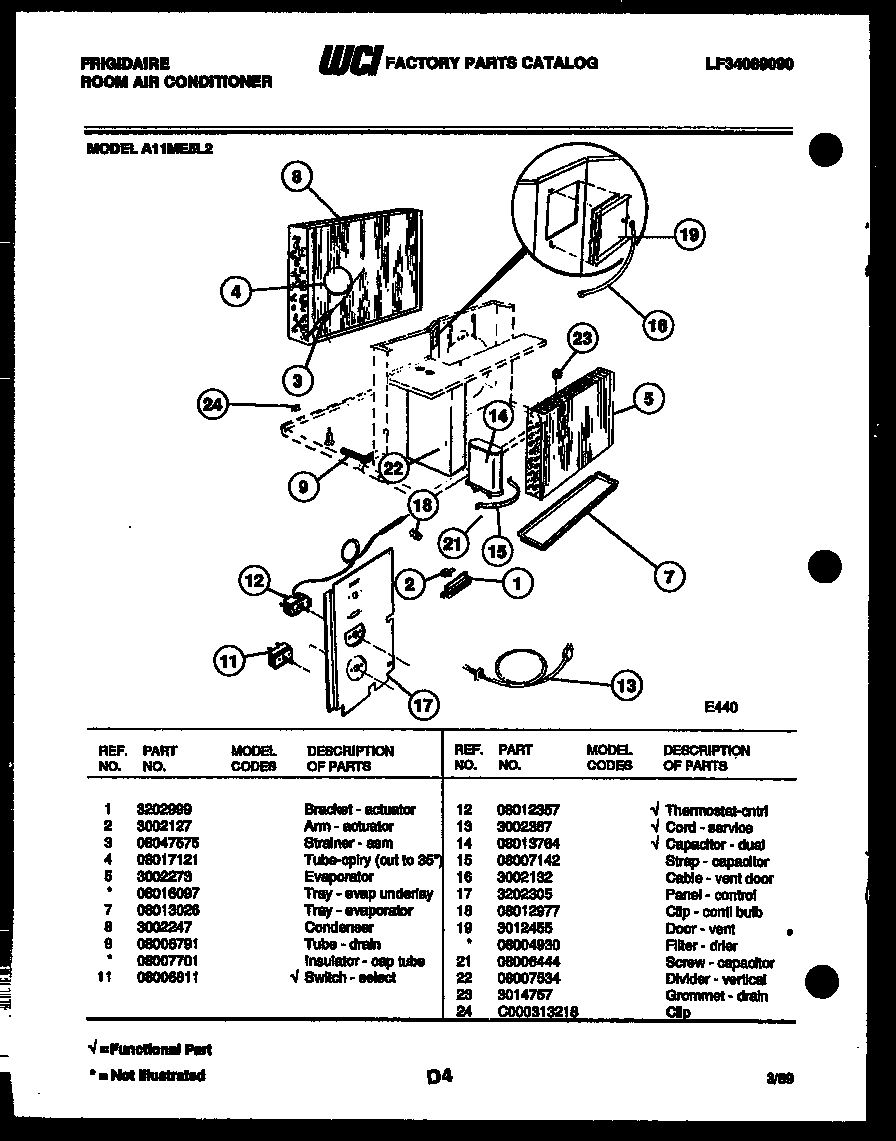

| 1 | WCI 3202999 |
| 2 | ARM-ACTUATOR (NON-ILLUSTRATED) |
| 4 | TUBE-CAPILLARY CUT TO 35`` |
| 5A | WCI 08016097 |
| 5 | WCI 3002273 |
| 7 | WCI 08013026 |
| 8 | WCI 3002247 |
| 9 | WCI 08006791 |
| 9A | WCI 08007701 |
| 11 | SWITCH-SELECTOR (5 POS) |
| 12 | WCI 08012357 |
| 13 | WCI 3002367 |
| 14 | CAPACITOR |
| 15 | WCI 08007142 |
| 16 | WCI 3002132 |
| 17 | WCI 3202305 |
| 18 | CLIP-SERVICE BULB |
| 19A | 5300265301 Frigidaire Air Conditioner P1 Filter Drier |
| 19 | WCI 3012455 |
| 21 | WCI 08006444 |
| 22 | DIVIDER |
| 23 | WCI 3014757 |
| 24 | CLIP - CONDENSER |
