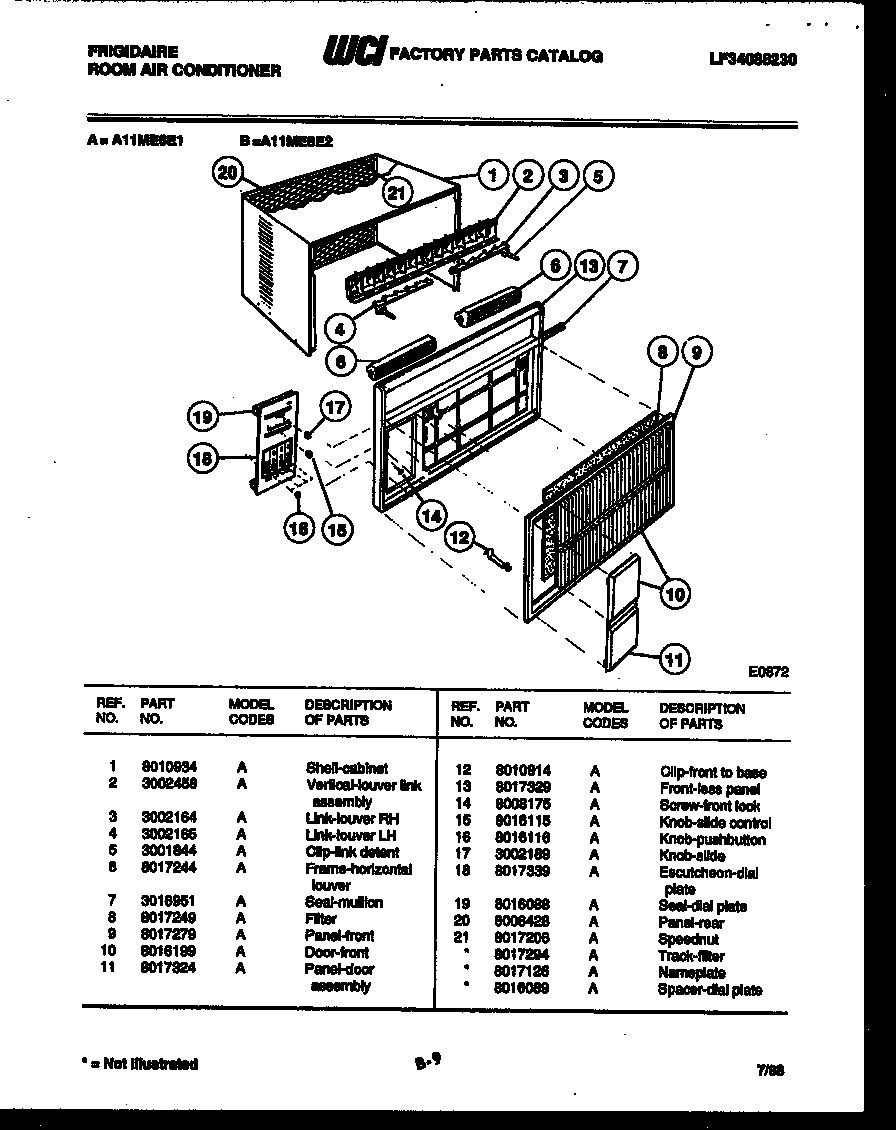

A11ME8E1 02 – CABINET PARTS

A11ME8E1 02 – CABINET PARTS

Written by

in

A11ME8E1 02 – CABINET PARTS

Products

PositionProduct
*20040SEAL-SPACER (NON-ILLUSTRATED)
*20040PLATE-NAME
*20040WCI 8017294
1SHELL
2VERT LOUVER AND LINK ASSY
3LINK-VERT LOUVER RH
4LINK- VERT LOUVER LH
5CLIP-DETENT
6FRAME-HORZ. LOUVR
7SHIELD SWITCH
8WCI 8017249
9PANEL
10WCI 8016199
11WCI 8017324
12CLIP-FRONT TO BASE
13WCI 8017329
14SCREW-FRONT
15KNOB-SLIDE CONTROL
16WCI 8016116
17WCI 3002189
18WCI 8017339
19SEAL-ESCUTCHEON
20WCI 8006428
21NUT
