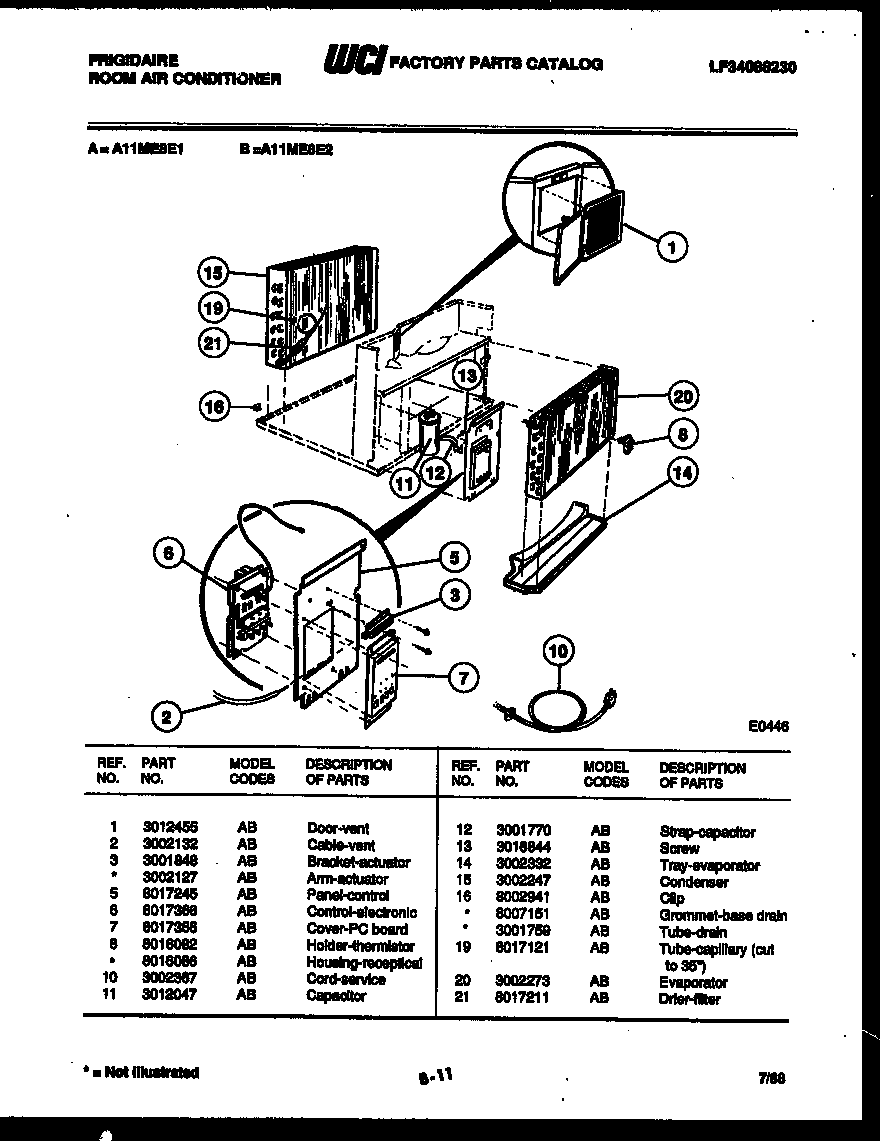

A11ME8E2 04 – UNIT PARTS

Products

Position	Product
1	WCI 3012455
2	WCI 3002132
3A	ARM-ACTUATOR (NON-ILLUSTRATED)
3	WCI 3001848
5	PANEL-COVER
6	CONTROL-ELECTRIC
7	WCI 8017355
8A	HOUSING
8	HOLDER-THERMSTOR (NON-ILLUSTRATED)
10	WCI 3002367
11	CAPACITOR-DUAL
12	WCI 3001770
13	STRAP-CAPACITOR
14	WCI 3002332
15	WCI 3002247
16	CLIP-CONDENSER
16A	WCI 8007151
16B	TUBE-DRAIN
19	TUBE-CAPILLARY (CUT TO 35“)
20	WCI 3002273
21	STRAINER-ASSEMBLY
