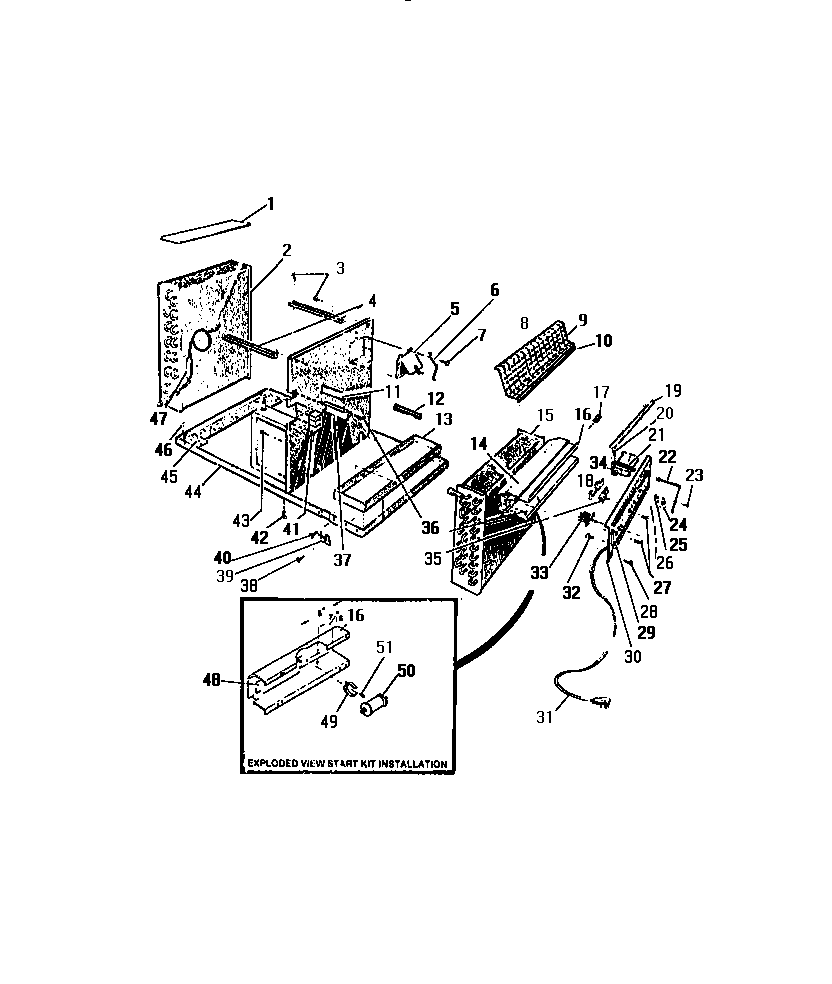

A11MEDSD3 04 – EVAPORATOR, CONDENSER, BASE (`SLIDE

Products

PositionProduct
1WCI 8002922
2WCI 8009431
4WCI 8004937
5WCI 8006929
6WCI 8003049
7SCREW (8)
9WCI 8003009
11WCI 8004943
12WCI 8002944
13WCI 8003030
15WCI 8013784
16WCI 8004939
17CLIP, CONTROL BOX TO SCROLL
18WCI 8002923
19WCI 8003066
21WCI 8003053
22WCI 8013147
23WCI 8011095
24WCI 8002946
25WCI 8013774
26WCI 8007194
27SCREW-CONTROL MTG
29WCI 8003001
30WCI 8013796
31WCI 8013818
32SCREW
33WCI 8013150
34WCI 8003015
35THERMOSTAT
37WCI 8004942
39WCI 8003051
40WCI 8013635
41WCI 8002947
42WCI 8002965
43SCREW (4)
44BASE-ASSEMBLY (SPECIAL ORDER)
45WCI 8002921
46CLIP-CONDENSER
47DRIER
48WCI 8003058
49CLAMP
50RELAY, START KIT
51WCI 8002954
